HM90 EAL-D32-L90-CF4-16

HM90 EAL-D32-L90-CF4-16 HM90 EAL-D32-L90-CF4-16

HM90 EAL-D32-L90-CF4-16

Iscar
Артикул: 3102762
В наличии
В корзину
Описание
Характеристики

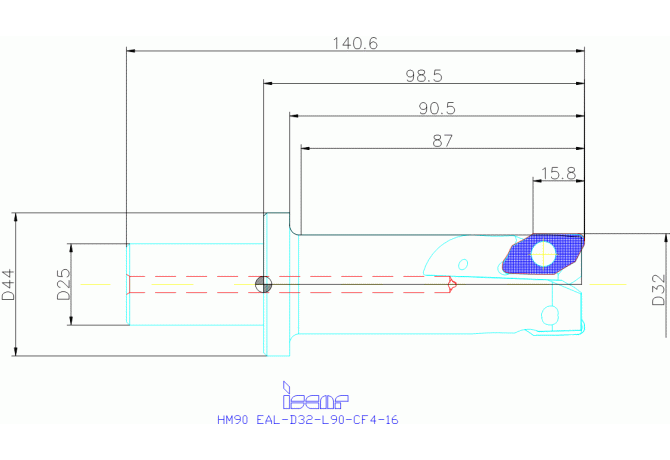

APMX Depth of cut maximum
15.8 mm
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CICT Cutting item count
2
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
32 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
2/2/2018
DIN
ICF02500195
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
2
FamilyProducts
Long Reach Endmills with CLICKFIT Adaptation Carrying HM90 APCR 1605... Inserts
HAND Cutting direction
R - Right
ID Technical product number
3102762
Interface codes
J6 / J61
ISO
ICF01C0250$$$$
ISYC Subclass
307-01 - Non-centre cutting single row end mill
KAPR Tool cutting edge angle
90 Degree
LH Head length
90.5 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ICF Iscar ClickFit
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0250
LOC-03 DCONMS Diameter
44 mm
LOC-03 ISO
ICF01C0250$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ICF02500195
LPR Protruding length
98.5 mm
LU Usable length
87 mm
Name Identifying order number
HM90 EAL-D32-L90-CF4-16
OAL Overall length
140.5 mm
RE Corner radius insert position A
4.5 mm
RMPX Ramping angle maximum
22.4 Degree
RPMX Rotational speed maximum
7000 1/min
Working process
No working processes available
WT Weight of item
0.62 kg
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
