Главная Каталог продукции Toolunited 14 307-01 - Non-centre cutting single row end mill HM90 EAL-D25-L90-CF4-16

HM90 EAL-D25-L90-CF4-16

HM90 EAL-D25-L90-CF4-16 HM90 EAL-D25-L90-CF4-16

HM90 EAL-D25-L90-CF4-16

Iscar
Артикул: 3102763
В наличии
В корзину
Описание
Характеристики

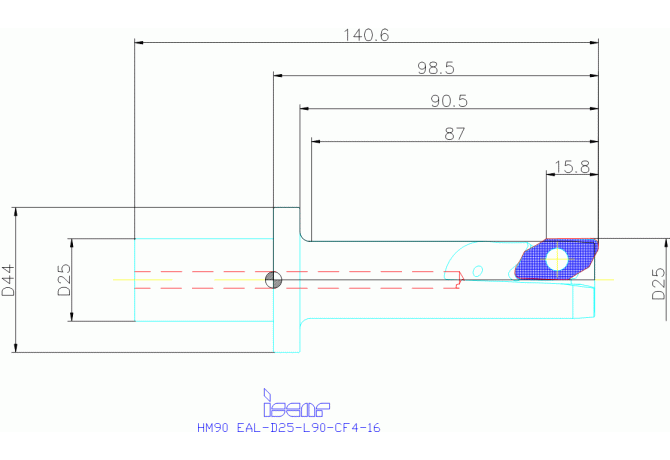

A2A Clearance angle major Pos. A
11 Degree
APMX Depth of cut maximum
15.8 mm
B1A Cutting edge length Pos. A
25.5 mm
B2A Insert width Pos. A
12.8 mm
B3A Inscribed circle diameter Pos. A
12.8 mm
BD Body diameter
44 mm
BLDA Tool style code Position A
4
C1A Insert thickness Pos. A
4.8 mm
CCONMS Connection count machine side
1
CICT Cutting item count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
0 - Without coolant exit
D1A Corner radius Pos. A
0.2 mm
DC Cutting diameter
25 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
2/1/2012
DIN
ICF00400105
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
1
FamilyProducts
HM90 EAL-D25-L90-CF4-16
HAND Cutting direction
R - Right
ID Technical product number
3102763
Interface codes
J6 /
ISYC Subclass
307-01 - Non-centre cutting single row end mill
LH Head length
90.5 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ICF Iscar ClickFit
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0040
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ICF00400105
LPR Protruding length
98.5 mm
LU Usable length
87 mm
Name Identifying order number
HM90 EAL-D25-L90-CF4-16
OAL Overall length
140.5 mm
RMPX Ramping angle maximum
25.9 Degree
Working process
No working processes available
WT Weight of item
0.8 kg
ZEFP Peripheral effective cutting edge count
1
