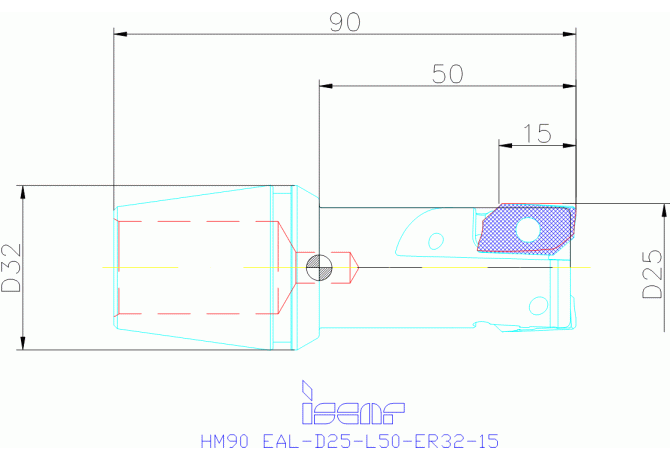

HM90 EAL-D25-L50-ER32-15

HM90 EAL-D25-L50-ER32-15 HM90 EAL-D25-L50-ER32-15

HM90 EAL-D25-L50-ER32-15

Iscar
Артикул: 3103551
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
13.5 mm
B1A Cutting edge length Pos. A
19.2 mm
B2A Insert width Pos. A
10 mm
B3A Inscribed circle diameter Pos. A
10 mm
BLDA Tool style code Position A
4
BMC Body material code
S - Solid steel
C1A Insert thickness Pos. A
5 mm
CCONMS Connection count machine side
2
CICT Cutting item count
2
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
D1A Corner radius Pos. A
4 mm
DC Cutting diameter
25 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
2/2/2018
DIN
SZD03200295
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
2
FamilyProducts
Endmills with Integral ER Collet Adaptation for Machining Aluminum
HAND Cutting direction
R - Right
ID Technical product number
3103551
Interface codes
J6 / J61
ISO
SZD02C0320$$$$
ISYC Subclass
307-01 - Non-centre cutting single row end mill
KAPR Tool cutting edge angle
90 Degree
LOC-03 CCFMS Connection code form
02
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SZD Collet adapter DIN / ISO
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03 ISO
SZD02C0320$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SZD03200295
LU Usable length
50 mm
Name Identifying order number
HM90 EAL-D25-L50-ER32-15
OAL Overall length
90 mm
RE Corner radius insert position A
4.5 mm
RMPX Ramping angle maximum
25 Degree
RPMX Rotational speed maximum
37500 1/min
Working process
No working processes available
WT Weight of item
0.24 kg
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
