Главная Каталог продукции Toolunited 14 307-01 - Non-centre cutting single row end mill HM90 E90A-D40-5-W40-XL

HM90 E90A-D40-5-W40-XL

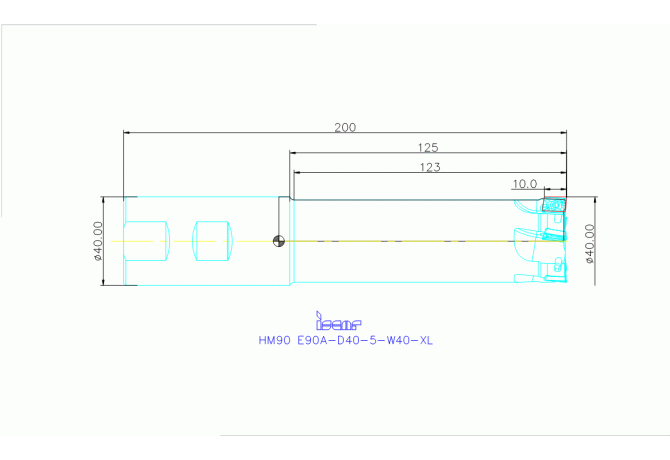

HM90 E90A-D40-5-W40-XL HM90 E90A-D40-5-W40-XL

HM90 E90A-D40-5-W40-XL

Iscar
Артикул: 3102134
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
11 Degree
APMX Depth of cut maximum
10 mm
B1A Cutting edge length Pos. A
10.95 mm
B2A Insert width Pos. A
6.7 mm
B3A Inscribed circle diameter Pos. A
6.7 mm
BLDA Tool style code Position A
4
BMC Body material code
S - Solid steel
C1A Insert thickness Pos. A
3.55 mm
CCONMS Connection count machine side
2
CICT Cutting item count
5
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
0 - Without coolant exit
D1A Corner radius Pos. A
0.5 mm
D4A Cutting edge angle major Pos. A
90 Degree
D6A Wiper edge length Pos. A
1.2 mm
DC Cutting diameter
40 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
2/2/2018
DIN
ZYL04001005
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
5
FamilyProducts
Endmills Carrying HM90 AP.. 1003... Inserts
HAND Cutting direction
R - Right
ID Technical product number
3102134
Interface codes
J6 / J61
ISO
ZYL10G4000h$06
ISYC Subclass
307-01 - Non-centre cutting single row end mill
KAPR Tool cutting edge angle
90 Degree
LH Head length
125 mm
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03 ISO
ZYL10G4000h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL04001005
LU Usable length
123 mm
Name Identifying order number
HM90 E90A-D40-5-W40-XL
OAL Overall length
200 mm
RMPX Ramping angle maximum
2.7 Degree
RPMX Rotational speed maximum
31600 1/min
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
No working processes available
WT Weight of item
1.73 kg
ZEFF Face effective cutting edge count
5
ZEFP Peripheral effective cutting edge count
5
