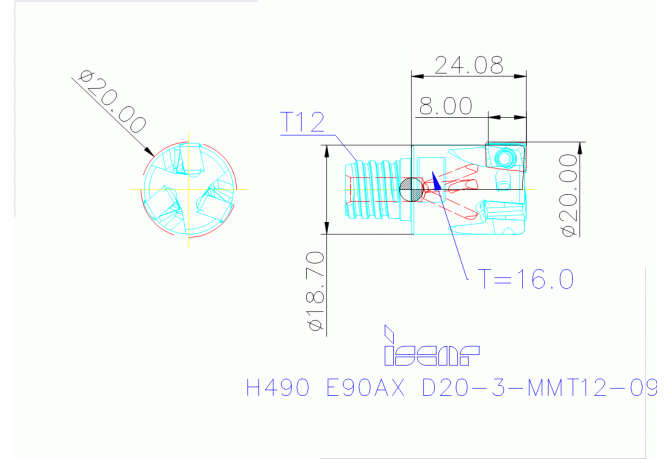

H490 E90AX D20-3-MMT12-09

Артикул: 3106199

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

1 mm

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

20 mm

DCP Data chip provision

0 - Without data chip

DIN

SAI01200195

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

90° Endmills with a MULTI-MASTER Threaded Connection Carrying H490 ANKX/ANCX 090...Double-Sided Rectangular Inserts

HAND Cutting direction

R - Right

ID Technical product number

3106199

Interface codes

J6 / J61

ISO

SAI01C0120$$$$

ISYC Subclass

307-01 - Non-centre cutting single row end mill

KAPR Tool cutting edge angle

90 Degree

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAI Screw mounting ISCAR

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0120

LOC-03 DCONMS Diameter

18.7 mm

LOC-03 ISO

SAI01C0120$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAI01200195

Name Identifying order number

H490 E90AX D20-3-MMT12-09

OAL Overall length

37.3 mm

THSZMS Connection thread nominal size machine side

T12

Working process

No working processes available

WT Weight of item

0.05 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
