Главная Каталог продукции Toolunited 14 307-01 - Non-centre cutting single row end mill H490 E90AX D16-2-MMT10-09

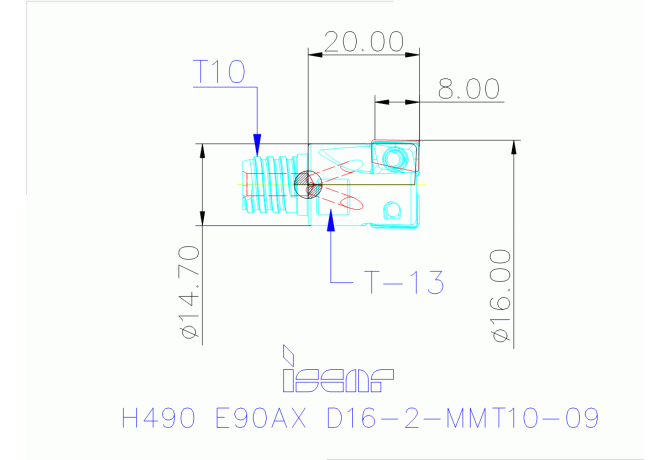

H490 E90AX D16-2-MMT10-09

H490 E90AX D16-2-MMT10-09

H490 E90AX D16-2-MMT10-09

H490 E90AX D16-2-MMT10-09

H490 E90AX D16-2-MMT10-09

Iscar

Артикул: 3106198

В наличии

В корзину

Описание

Характеристики

A1A Cutting edge angle major Pos. A

90 Degree

A2A Clearance angle major Pos. A

0 Degree

APMX Depth of cut maximum

8 mm

B1A Cutting edge length Pos. A

8.52 mm

B2A Insert width Pos. A

6.5 mm

B3A Inscribed circle diameter Pos. A

6.5 mm

BLDA Tool style code Position A

4

BMC Body material code

S - Solid steel

C1A Insert thickness Pos. A

5.2 mm

CCONMS Connection count machine side

2

CICT Cutting item count

2

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

D1A Corner radius Pos. A

0.4 mm

D4A Cutting edge angle major Pos. A

90 Degree

D6A Wiper edge length Pos. A

4.8 mm

DC Cutting diameter

16 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

2/2/2018

DIN

SAI01000115

F23 Number of mounting layers

1

F24 Cutting item count per mounting layer

2

FamilyProducts

90\S\0 Endmills with a MULTI-MASTER Threaded Connection Carrying H490 ANKX/ANCX

HAND Cutting direction

R - Right

ID Technical product number

3106198

Interface codes

J6 / J61

ISO

SAI01G1000$$$$

ISYC Subclass

307-01 - Non-centre cutting single row end mill

KAPR Tool cutting edge angle

90 Degree

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAI Screw mounting ISCAR

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0100

LOC-03 DCONMS Diameter

15.3 mm

LOC-03 ISO

SAI01G1000$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAI01000115

LPR Protruding length

23 mm

Name Identifying order number

H490 E90AX D16-2-MMT10-09

OAL Overall length

34.3 mm

Working process

No working processes available

WT Weight of item

0.02 kg

ZEFF Face effective cutting edge count

2

ZEFP Peripheral effective cutting edge count

2
