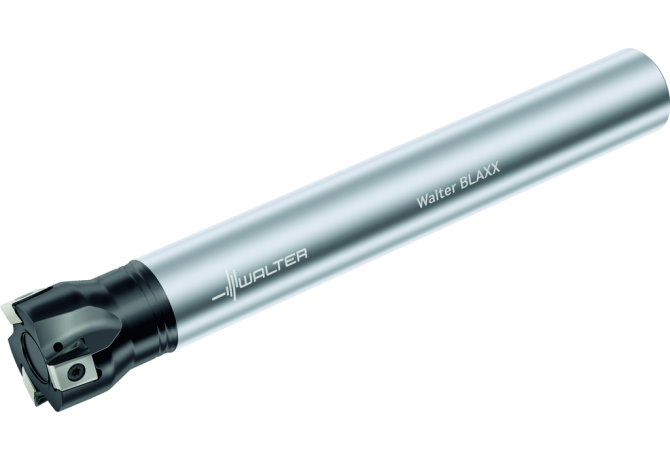

Главная Каталог продукции Toolunited 14 307-01 - Non-centre cutting single row end mill F5141.Z32.040.Z03.12

F5141.Z32.040.Z03.12

F5141.Z32.040.Z03.12 F5141.Z32.040.Z03.12 F5141.Z32.040.Z03.12

F5141.Z32.040.Z03.12

Walter
Артикул: 6195018
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
APMX Depth of cut maximum
12 mm
AZ Plunge depth maximum
1.1 mm
BD Body diameter
31 mm
BLDA Tool style code Position A
4
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CICT Cutting item count
3
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial

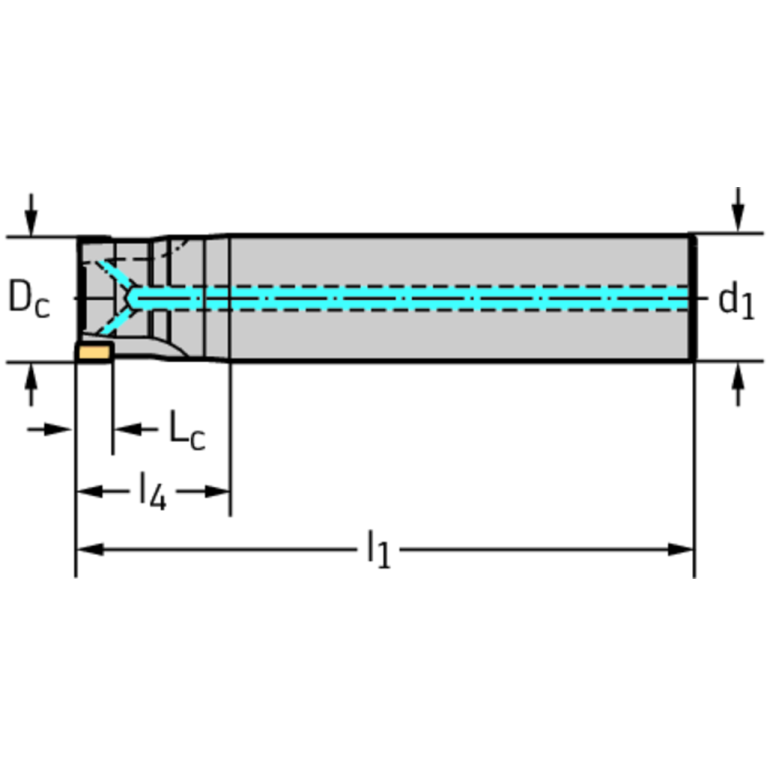

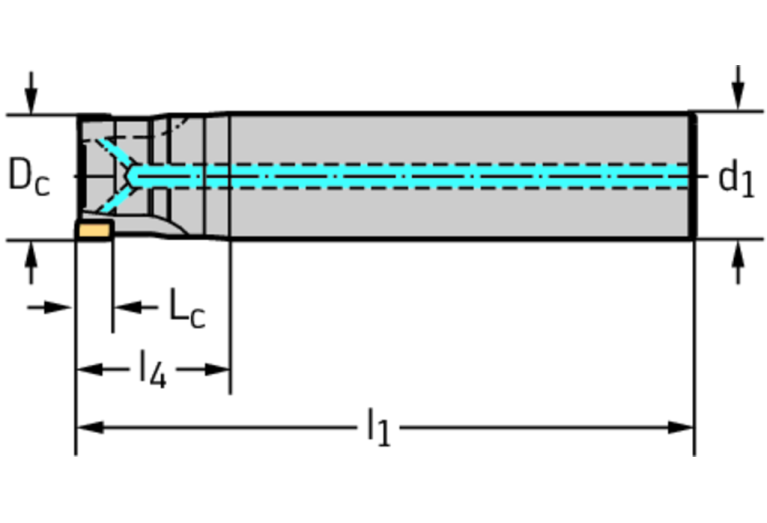

DC Cutting diameter
40 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL03200115
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
3
FamilyProducts
Shoulder milling cutters F5141
GAMF Rake angle radial
0 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
R - Right
ID Technical product number
6195018
Interface codes
J6 / J61
ISO
ZYL01G3200$$$$
ISYC Subclass
307-01 - Non-centre cutting single row end mill
KAPR Tool cutting edge angle
90 Degree
LF Functional length
250 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
1 Metric with coolant
LOC-03 CZCMS Size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03 ISO
ZYL01G3200$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL03200115
LPR Protruding length
44 mm
LS Shank length
60 mm
LU Usable length
44 mm
Name Identifying order number
F5141.Z32.040.Z03.12
OAL Overall length
250 mm
RMPX Ramping angle maximum
0 Degree
RPMX Rotational speed maximum
6700 1/min
Working process
FEC - Square shoulder milling,FNU - Groove milling,FPL - Face milling,FZI - Circular milling
WT Weight of item
1.572 kg
ZEFF Face effective cutting edge count
3
ZEFP Peripheral effective cutting edge count
3
