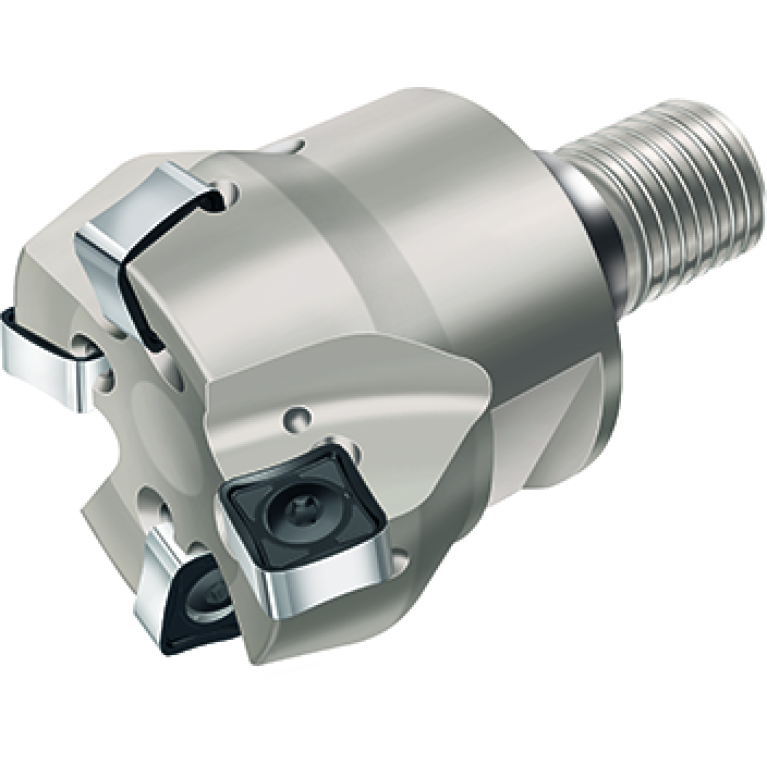

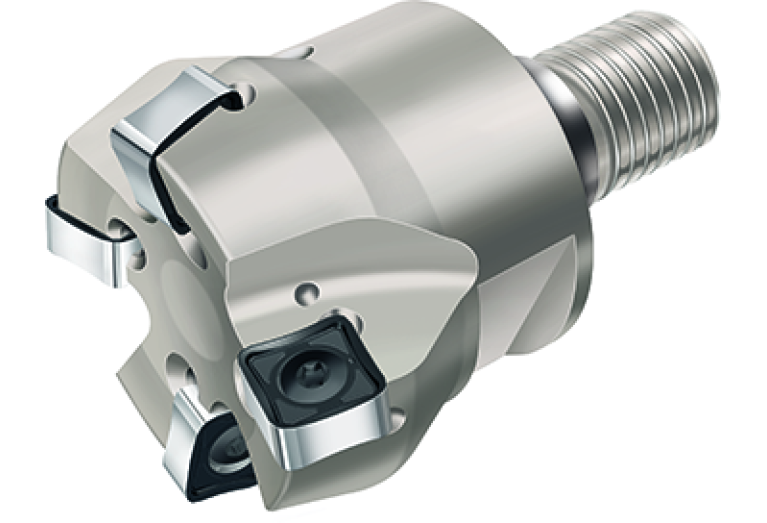

Главная Каталог продукции Toolunited 14 307-01 - Non-centre cutting single row end mill F4047.T36.040.Z03.08

F4047.T36.040.Z03.08

F4047.T36.040.Z03.08 F4047.T36.040.Z03.08 F4047.T36.040.Z03.08 F4047.T36.040.Z03.08

F4047.T36.040.Z03.08

Walter
Артикул: 5197437
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
8 mm
BI Block index
1
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
40 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
SAW03600195
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
3
FamilyProducts
Face milling cutters F4047
HAND Cutting direction
R - Right
ID Technical product number
5197437
Interface codes
J6 / J61
ISO
SAW01C0360$$$$
ISYC Subclass
307-01 - Non-centre cutting single row end mill
KAPR Tool cutting edge angle
75 Degree
LOC-01 BI Block index
1
LOC-01 ISO
WR$$MS1205123R***20
LOC-01-Connection-codes
J44 / J441 - Insert (Unknown 01)
LOC-01-DIN
W-MS1205**
LOC-02 BI Block index
2
LOC-02 ISO
WR$$SN1205**3N*EN**
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
W-SN1205**
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
SAW Screw mounting WALTER
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0360
LOC-03 DCONMS Diameter
36 mm
LOC-03 ISO
SAW01C0360$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SAW03600195
LPR Protruding length
40 mm
Name Identifying order number
F4047.T36.040.Z03.08
OAL Overall length
75 mm
RMPX Ramping angle maximum
0 Degree
RPMX Rotational speed maximum
18800 1/min
Working process
FPL - Face milling
WT Weight of item
0.353 kg
ZEFF Face effective cutting edge count
3
ZEFP Peripheral effective cutting edge count
3
