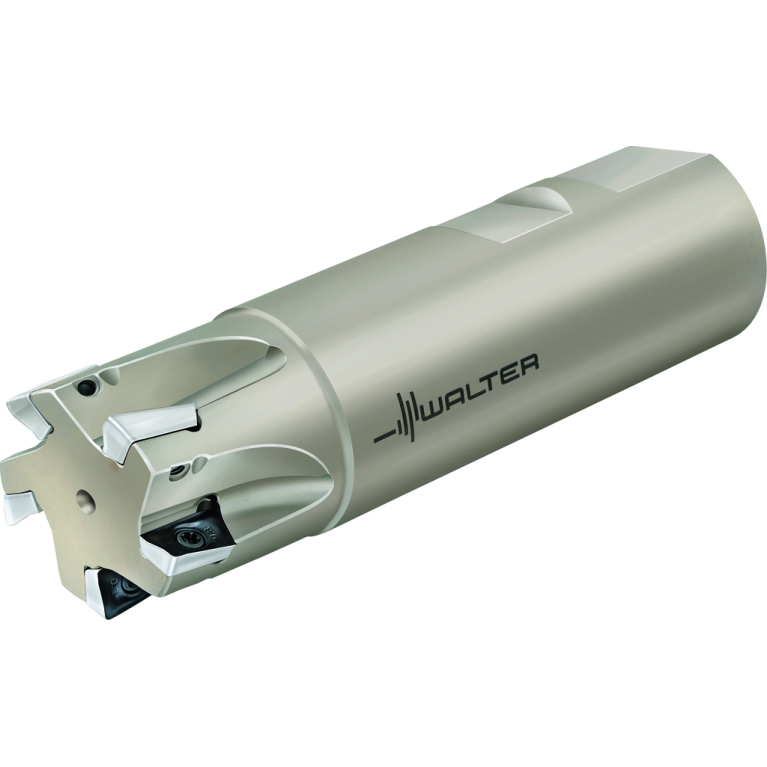

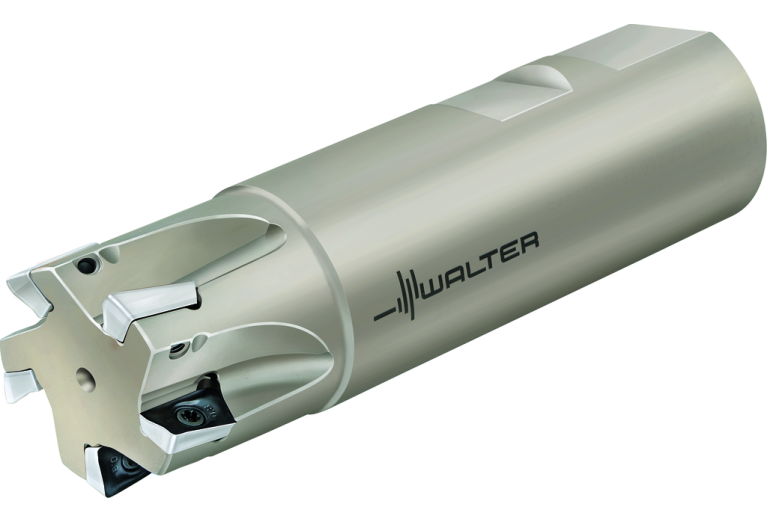

Главная Каталог продукции Toolunited 14 307-01 - Non-centre cutting single row end mill F4042R.UZ19.019.Z02.10

F4042R.UZ19.019.Z02.10

Артикул: 5530101

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

0 - Adjustment not possible

APMX Depth of cut maximum

10 mm

AZ Plunge depth maximum

0.6 mm

BD Body diameter

18.39 mm

BLDA Tool style code Position A

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

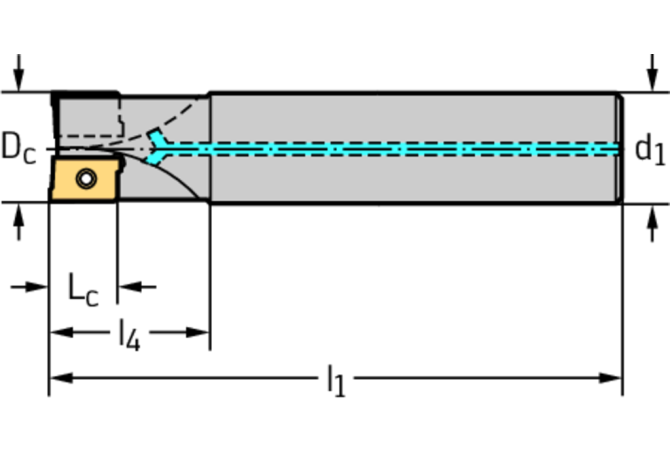

DC Cutting diameter

19.05 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL07500135

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Shoulder milling cutters F4042R

GAMF Rake angle radial

0 Degree

GAMP Rake angle axial

0 Degree

HAND Cutting direction

R - Right

ID Technical product number

5530101

Interface codes

J6 / J61

ISO

ZYL01R7500$$$$

ISYC Subclass

307-01 - Non-centre cutting single row end mill

KAPR Tool cutting edge angle

90 Degree

LF Functional length

203.2 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

3 Inch with coolant

LOC-03 CZCMS Size code

0750

LOC-03 DCONMS Diameter

19.05 mm

LOC-03 ISO

ZYL01R7500$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL07500135

LPR Protruding length

30 mm

LU Usable length

30 mm

Name Identifying order number

F4042R.UZ19.019.Z02.10

OAL Overall length

203.2 mm

RMPX Ramping angle maximum

3.02 Degree

RPMX Rotational speed maximum

9700 1/min

Working process

FEC - Square shoulder milling,FFO - Die milling,FNU - Groove milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling

WT Weight of item

0.422 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
