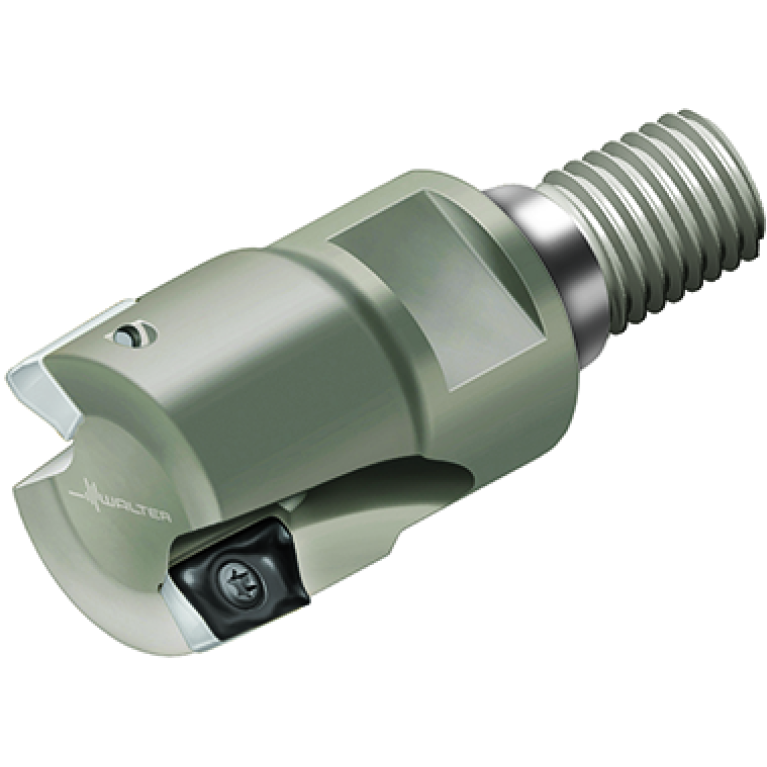

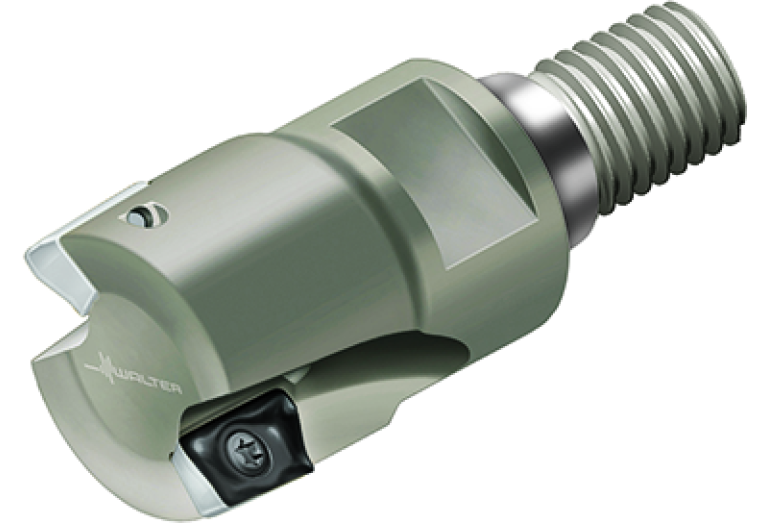

Главная Каталог продукции Toolunited 14 307-01 - Non-centre cutting single row end mill F4042R.UT45.051.Z07.10

F4042R.UT45.051.Z07.10

Артикул: 5535433

В наличии

В корзину

Описание

Характеристики

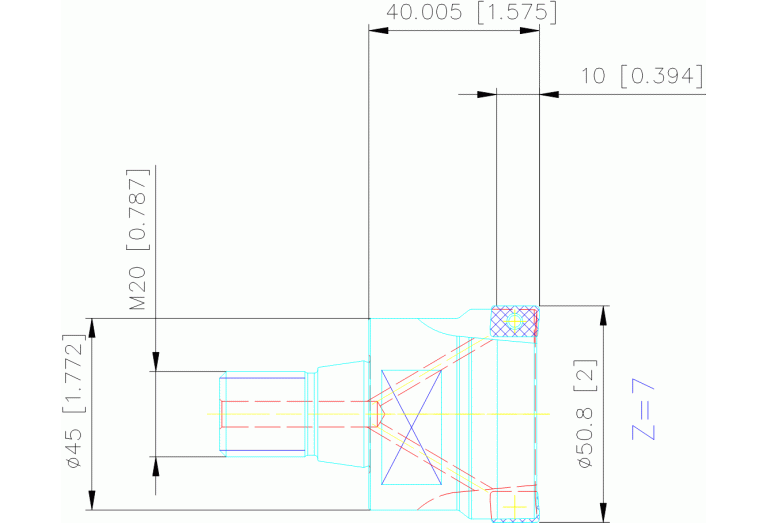

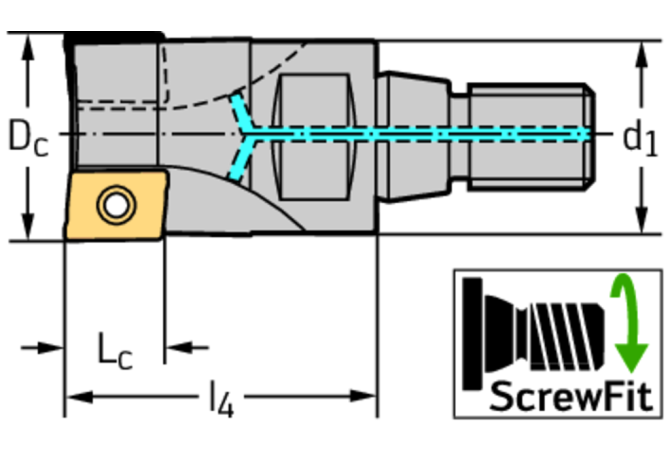

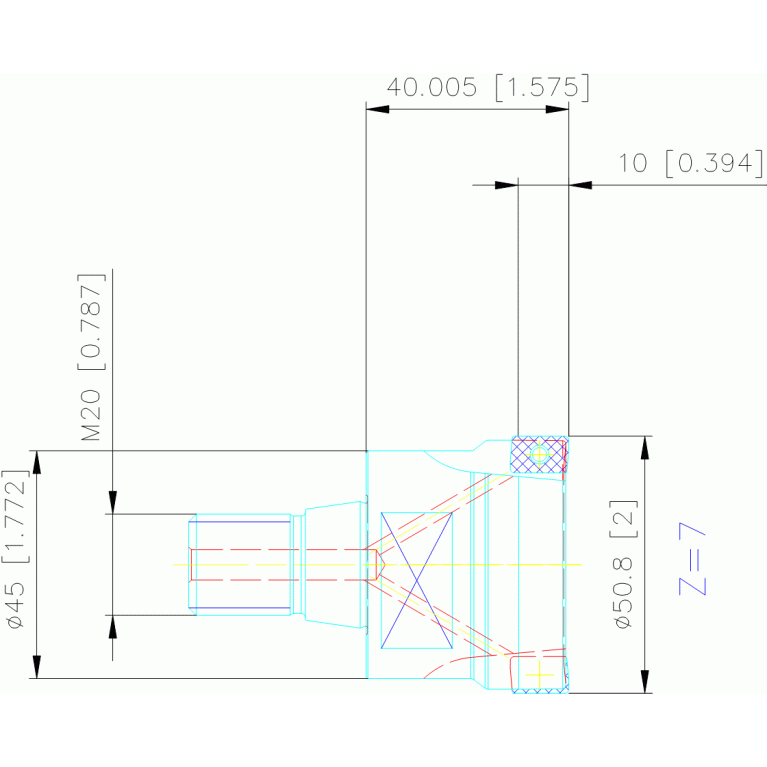

APMX Depth of cut maximum

10 mm

BI Block index

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

50.8 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

SAW04500195

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Shoulder milling cutters F4042R

HAND Cutting direction

R - Right

ID Technical product number

5535433

Interface codes

J6 / J61

ISO

SAW01C0450$$$$

ISYC Subclass

307-01 - Non-centre cutting single row end mill

KAPR Tool cutting edge angle

90 Degree

LOC-01 BI Block index

LOC-01 ISO

WR$$AD10T3**3R*****

LOC-01-Connection-codes

J44 / J441 - Insert (Unknown 01)

LOC-01-DIN

W-AD10T3**

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

SAW Screw mounting WALTER

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0450

LOC-03 DCONMS Diameter

45 mm

LOC-03 ISO

SAW01C0450$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAW04500195

LPR Protruding length

40 mm

Name Identifying order number

F4042R.UT45.051.Z07.10

OAL Overall length

75 mm

RMPX Ramping angle maximum

0.7 Degree

RPMX Rotational speed maximum

22200 1/min

Working process

FEC - Square shoulder milling,FFO - Die milling,FNU - Groove milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling

WT Weight of item

0.45 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
