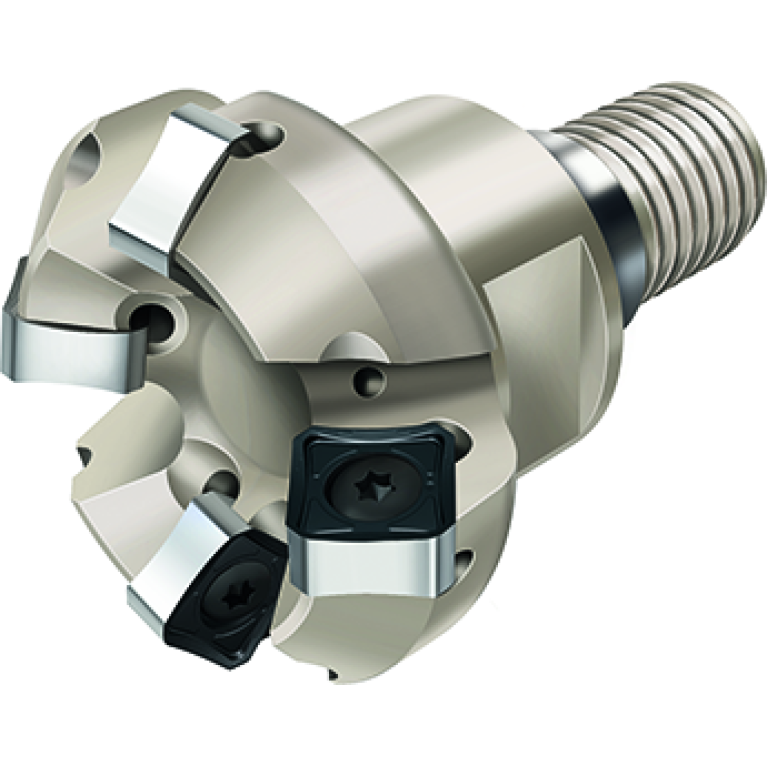

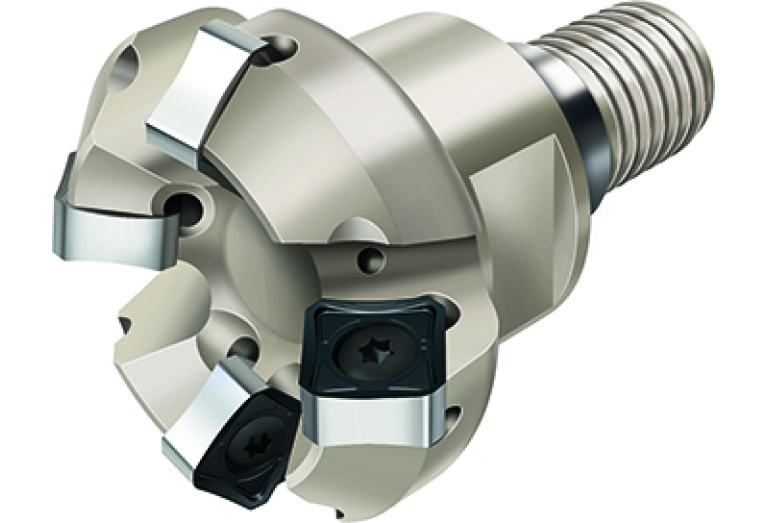

Главная Каталог продукции Toolunited 14 307-01 - Non-centre cutting single row end mill F4033.UT36.038.Z03.06

F4033.UT36.038.Z03.06

F4033.UT36.038.Z03.06

F4033.UT36.038.Z03.06

F4033.UT36.038.Z03.06

F4033.UT36.038.Z03.06

F4033.UT36.038.Z03.06

F4033.UT36.038.Z03.06

Walter

Артикул: 5051562

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

6.5 mm

BI Block index

1

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

2

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

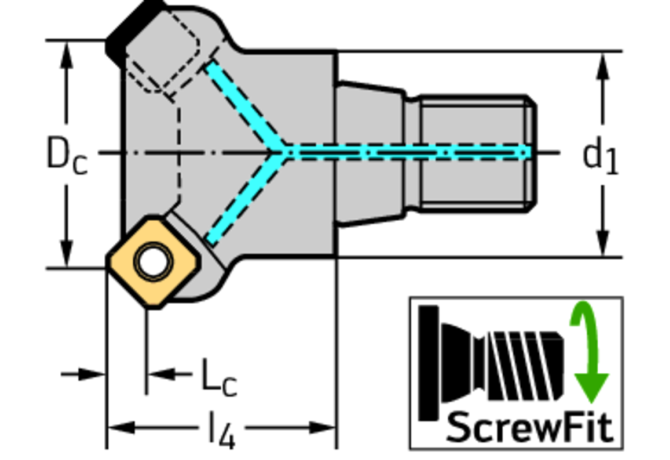

DC Cutting diameter

38.1 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

SAW03600195

F23 Number of mounting layers

1

F24 Cutting item count per mounting layer

3

FamilyProducts

Face milling cutters F4033

HAND Cutting direction

R - Right

ID Technical product number

5051562

Interface codes

J6 / J61

ISO

SAW01C0360$$$$

ISYC Subclass

307-01 - Non-centre cutting single row end mill

KAPR Tool cutting edge angle

45 Degree

LOC-01 BI Block index

1

LOC-01 ISO

WR$$SN1205**3N*AN**

LOC-01-Connection-codes

J44 / J441 - Insert (Unknown 01)

LOC-01-DIN

W-SN1205**

LOC-02 BI Block index

2

LOC-02 ISO

WR$$SN1205123R***20

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

W-SN1205AN

LOC-03 CCFMS Form

01

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

SAW Screw mounting WALTER

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0360

LOC-03 DCONMS Diameter

36 mm

LOC-03 ISO

SAW01C0360$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAW03600195

LPR Protruding length

40 mm

Name Identifying order number

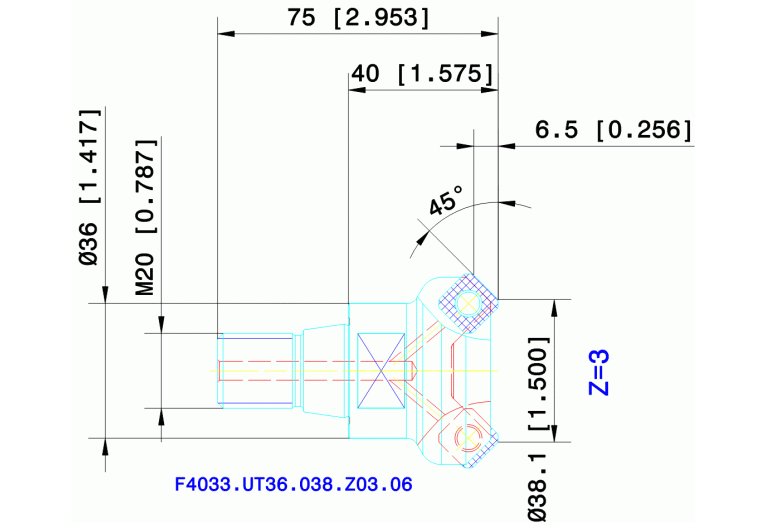

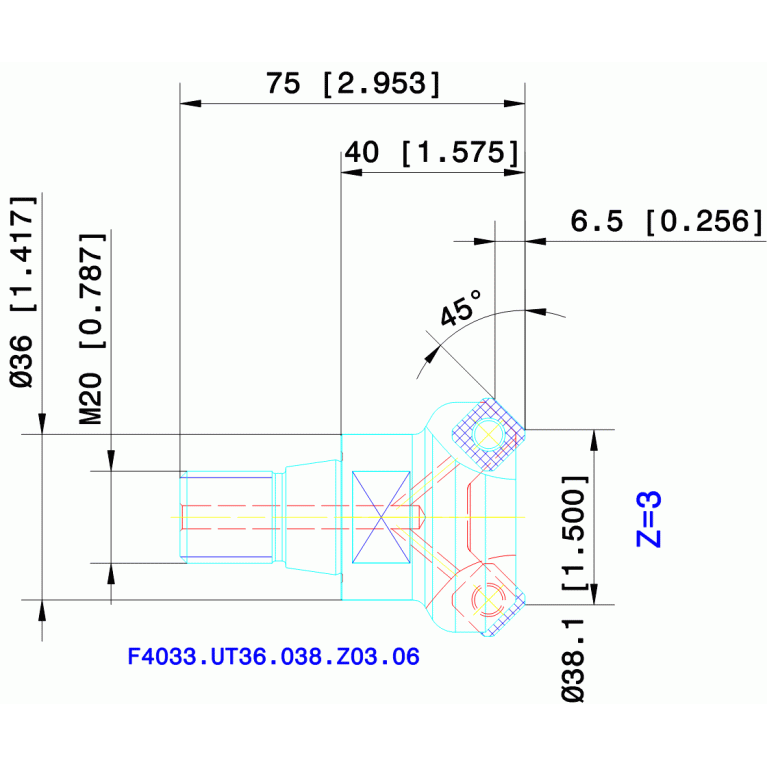

F4033.UT36.038.Z03.06

OAL Overall length

75 mm

RMPX Ramping angle maximum

0 Degree

RPMX Rotational speed maximum

20500 1/min

Working process

FPL - Face milling

WT Weight of item

0.38 kg

ZEFF Face effective cutting edge count

3

ZEFP Peripheral effective cutting edge count

3
