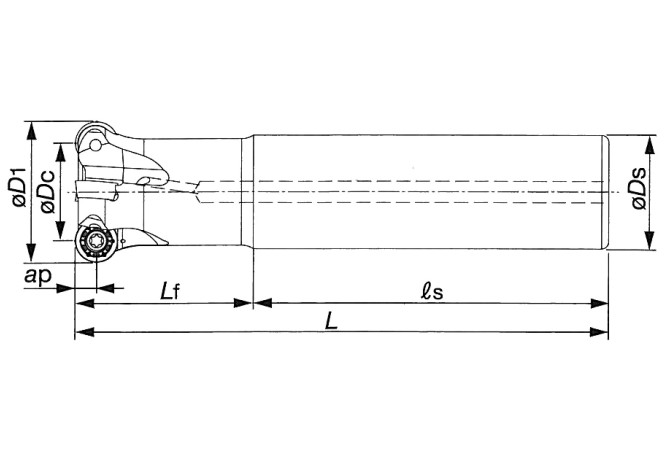

Главная Каталог продукции Toolunited 14 307-01 - Non-centre cutting single row end mill ERP12R032M32.0-03

ERP12R032M32.0-03

ERP12R032M32.0-03

ERP12R032M32.0-03

ERP12R032M32.0-03

ERP12R032M32.0-03

Tungaloy

Артикул: 6987864

В наличии

В корзину

Описание

Характеристики

A1A Cutting edge angle major Pos. A

0 Degree

A2A Clearance angle major Pos. A

11 Degree

APMX Depth of cut maximum

6 mm

B3A Inscribed circle diameter Pos. A

12 mm

C1A Insert thickness Pos. A

12 mm

CCONMS Connection count machine side

1

CICT Cutting item count

3

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

TT - Tungaloy

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

D2A Corner chamfer length Pos. A

10 mm

D3A Corner chamfer angle Pos. A

4.76 Degree

D4A Cutting edge angle major Pos. A

6 Degree

DC Cutting diameter

20 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

9/27/2013

DIN

ZYL03200115

F23 Number of mounting layers

1

F24 Cutting item count per mounting layer

3

FamilyProducts

Round insert milling cutter, shank type ERP12

GAMF Rake angle radial

0 Degree

GAMP Rake angle axial

0 Degree

HAND Cutting direction

R - Right

ID Technical product number

6987864

Interface codes

J6 /

ISYC Subclass

307-01 - Non-centre cutting single row end mill

KAPR Tool cutting edge angle

90 Degree

LF Functional length

150 mm

LOC-03 CCFMS Form

01

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

0320

LOC-03 DCONMS Diameter

32 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03200115

LPR Protruding length

50 mm

LS Shank length

100 mm

Name Identifying order number

ERP12R032M32.0-03

OAL Overall length

150 mm

RMPX Ramping angle maximum

8 Degree

Working process

FEC - Square shoulder milling,FFO - Die milling,FNB - Slotting,FNU - Groove milling,FPL - Face milling

WT Weight of item

0.8 kg

ZEFF Face effective cutting edge count

3

ZEFP Peripheral effective cutting edge count

3
