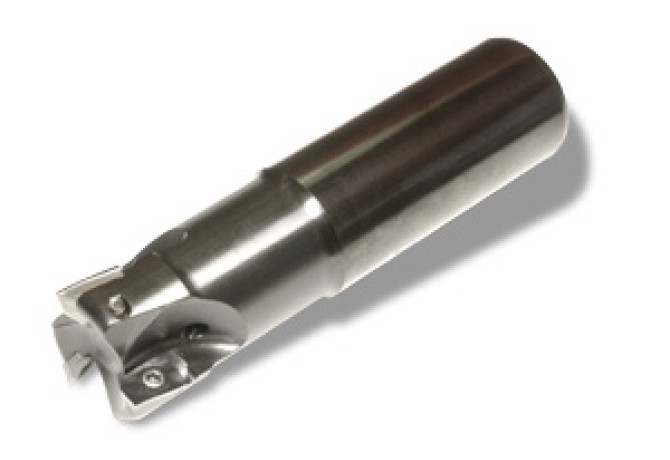

Главная Каталог продукции Toolunited 14 307-01 - Non-centre cutting single row end mill CHSC.16.R.02-11-B-25

CHSC.16.R.02-11-B-25

CHSC.16.R.02-11-B-25 CHSC.16.R.02-11-B-25

CHSC.16.R.02-11-B-25

Ceratizit
Артикул: CHSC.16.R.02-11-B-25
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
10 mm
CCONMS Connection count machine side
1
CICT Cutting item count
2
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
CE - Ceratizit
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
16 mm
DCP Data chip provision
0 - Without data chip
DIN
ZYL01601015
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
2
FamilyProducts
Maximill end mill shank
GAMF Rake angle radial
5 Degree
GAMP Rake angle axial
-2 Degree
HAND Cutting direction
R - Right
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
1
ISYC Subclass
307-01 - Non-centre cutting single row end mill
KAPR Tool cutting edge angle
90 Degree
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0160
LOC-03 DCONMS Diameter
16 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01601015
LPR Protruding length
25 mm
LS Shank length
48 mm
MILTTY Mill tool type ISO
G - Side end mill (one or more indexable insert pro cutting edge) 90°
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
CHSC.16.R.02-11-B-25
OAL Overall length
75 mm
Working process
FNU - Groove milling
ZEFP Peripheral effective cutting edge count
2
