BT50-AM4050HS-5

BT50-AM4050HS-5 BT50-AM4050HS-5 BT50-AM4050HS-5

BT50-AM4050HS-5

Korloy
Артикул: 1-06-037496
В наличии
В корзину
Описание
Характеристики

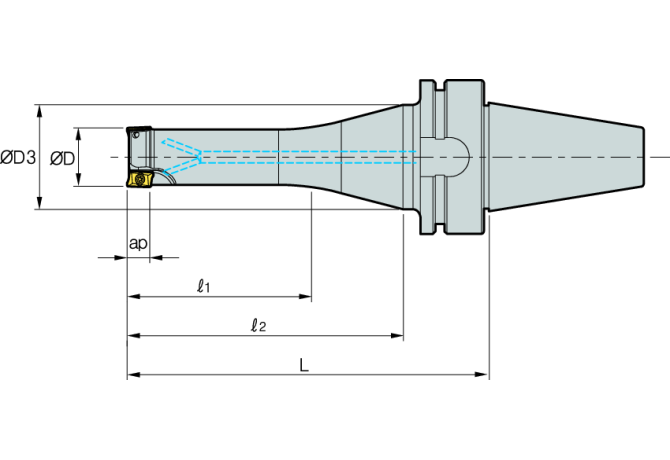

APMX Depth of cut maximum
17 mm
BLDA Tool style code Position A
5
CCONMS Connection count machine side
1
CICT Cutting item count
5
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KOR - Korloy
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
50 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
6/4/2014
DIN
SKG05005195
DN Neck diameter
47 mm
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
5
FamilyProducts
BT50 AM3000HS / AM4000HS
GAMF Rake angle radial
-20 Degree
GAMP Rake angle axial
7 Degree
HAND Cutting direction
R - Right
ID Technical product number
1-06-037496
Interface codes
J6 /
ISYC Subclass
307-01 - Non-centre cutting single row end mill
KAPR Tool cutting edge angle
90 Degree
LF Functional length
143 mm
LH Head length
98 mm
LOC-03 CCFMS Connection code form
51
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SKG steep taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0500
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG05005195
LPR Protruding length
143 mm
LU Usable length
50 mm
Name Identifying order number
BT50-AM4050HS-5
Working process
No working processes available
ZEFP Peripheral effective cutting edge count
5
