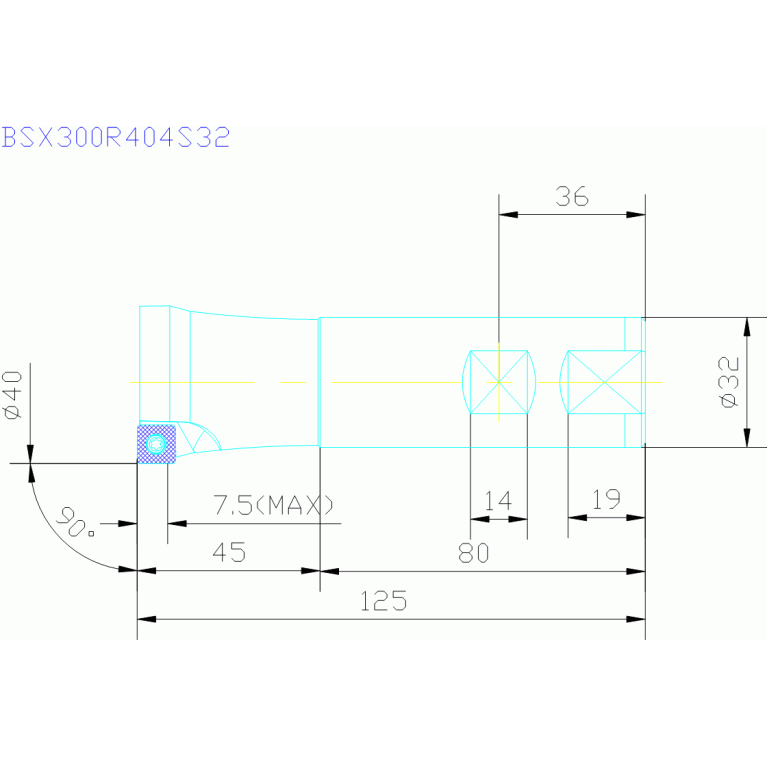

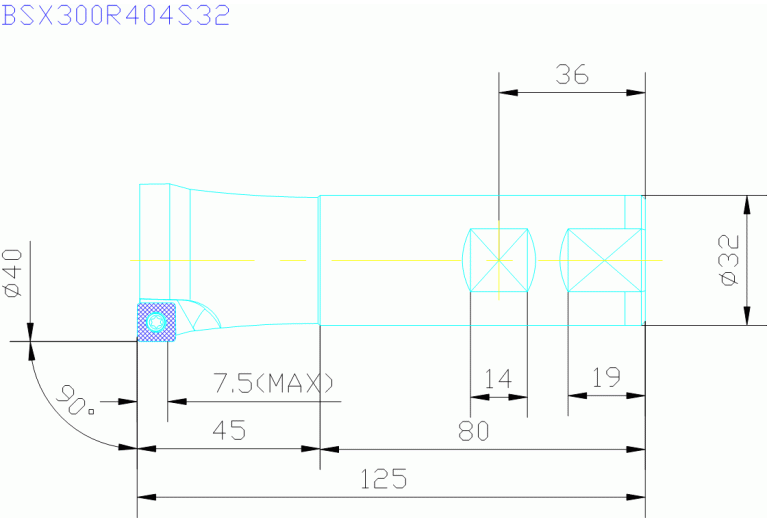

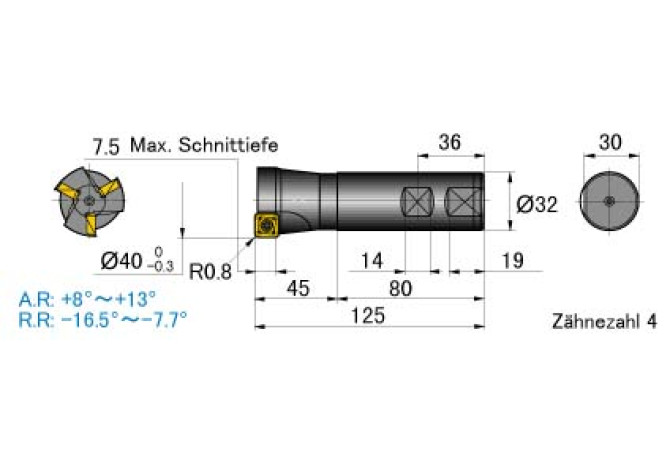

BSX300R404S32

Артикул: BSX300R404S32

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

0 - Adjustment not possible

APMX Depth of cut maximum

7.5 mm

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

40 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL03201005

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

ENDMILL

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

307-01 - Non-centre cutting single row end mill

KAPR Tool cutting edge angle

90 Degree

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0320

LOC-03 DCONMS Diameter

32 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03201005

LPR Protruding length

45 mm

MILTTY Mill tool type ISO

J - Face and side and mill (one more then one indexable insert pro cutting edeg) 90°

Name Identifying order number

BSX300R404S32

OAL Overall length

125 mm

Working process

FEC - Square shoulder milling,FPL - Face milling

ZEFP Peripheral effective cutting edge count
