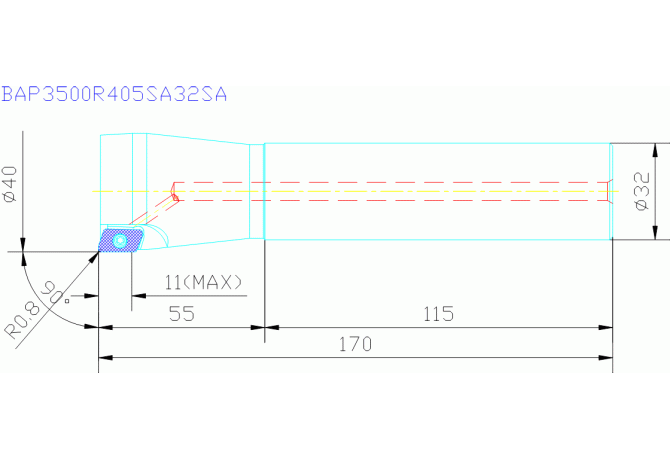

BAP3500R405SA32SA

Артикул: BAP3500R405SA32SA

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

40 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL03200115

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Shoulder mill BAP3500

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

307-01 - Non-centre cutting single row end mill

KAPR Tool cutting edge angle

90 Degree

LF Functional length

170 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0320

LOC-03 DCONMS Diameter

32 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03200115

LPR Protruding length

55 mm

MILTTY Mill tool type ISO

J - Face and side and mill (one more then one indexable insert pro cutting edeg) 90°

Name Identifying order number

BAP3500R405SA32SA

OAL Overall length

170 mm

RMPX Ramping angle maximum

2.9 Degree

Working process

FEC - Square shoulder milling,FNU - Groove milling,FPL - Face milling

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
