Главная Каталог продукции Toolunited 14 307-01 - Non-centre cutting single row end mill APX3000R182WA16ELA

APX3000R182WA16ELA

APX3000R182WA16ELA APX3000R182WA16ELA APX3000R182WA16ELA

APX3000R182WA16ELA

Mitsubishi Materials
Артикул: APX3000R182WA16ELA
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
85 Degree
A2A Clearance angle major Pos. A
11 Degree
ADJBY Adjustment property
0 - Adjustment not possible
APMX Depth of cut maximum
10 mm
B1A Cutting edge length Pos. A
10 mm
B2A Insert width Pos. A
6.6 mm
B3A Inscribed circle diameter Pos. A
6.6 mm
BLDA Tool style code Position A
5
C1A Insert thickness Pos. A
3.6 mm
CCONMS Connection count machine side
1
CICT Cutting item count
2
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
MI - Mitsubishi Materials
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
D1A Corner radius Pos. A
0.2 mm
D4A Cutting edge angle major Pos. A
90 Degree
D6A Wiper edge length Pos. A
1.8 mm

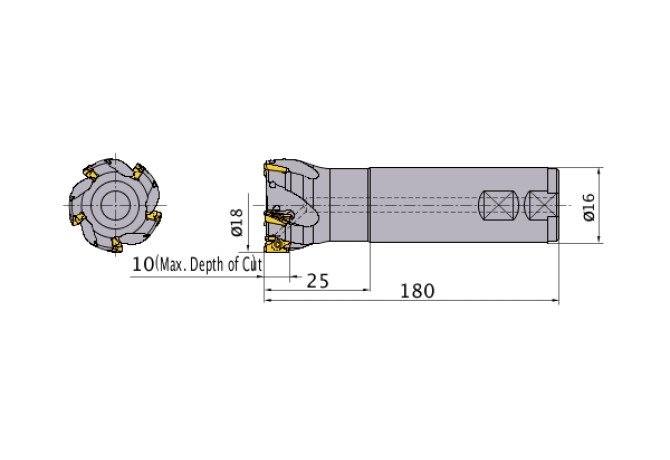

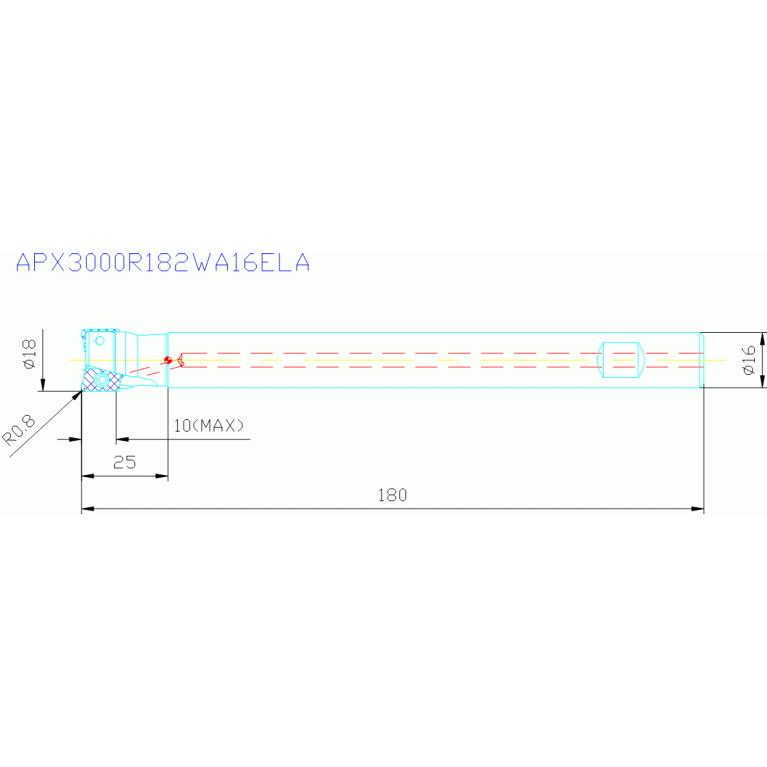

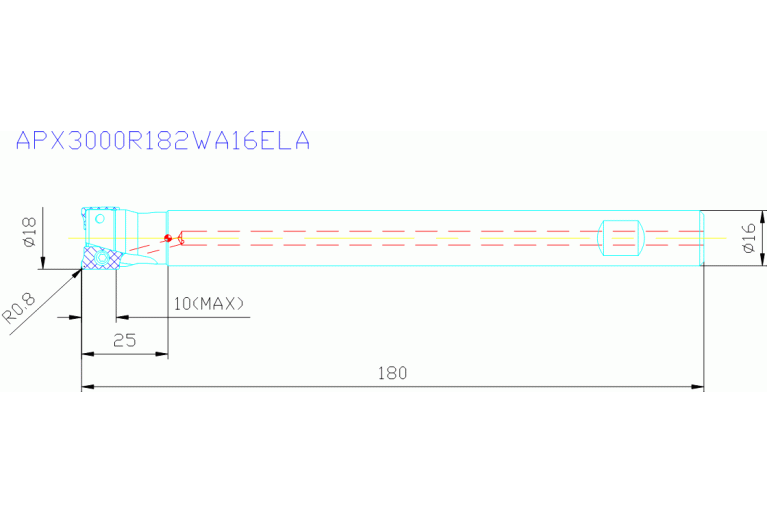

DC Cutting diameter
18 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/1/2022
DIN
ZYL01601015
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
2
FamilyProducts
APX3000, extra long type, Weldon Shank
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
307-01 - Non-centre cutting single row end mill
KAPR Tool cutting edge angle
90 Degree
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0160
LOC-03 DCONMS Diameter
16 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01601015
LPR Protruding length
25 mm
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
APX3000R182WA16ELA
OAL Overall length
180 mm
RMPX Ramping angle maximum
11 Degree
RPMX Rotational speed maximum
19600 1/min
Working process
FEC - Square shoulder milling,FNU - Groove milling,FPL - Face milling
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
