Главная Каталог продукции Toolunited 14 307-01 - Non-centre cutting single row end mill AJX08R253AM1235

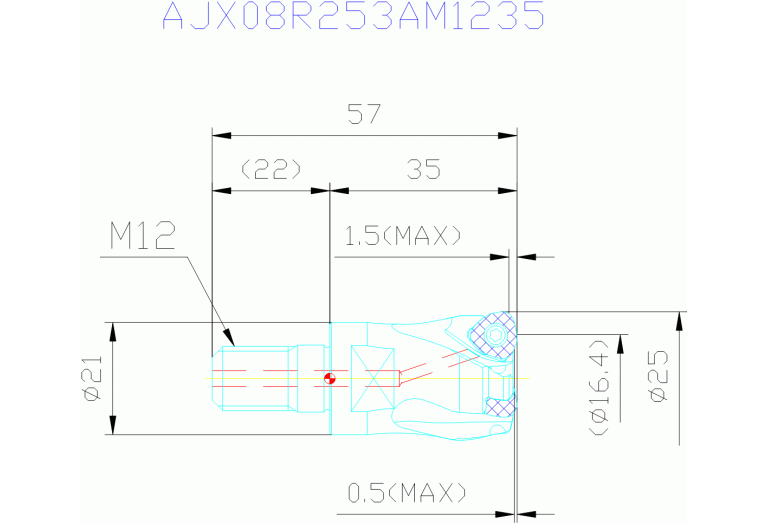

AJX08R253AM1235

Артикул: 434159

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

13 Degree

APMX Depth of cut maximum

0.9 mm

B3A Inscribed circle diameter Pos. A

8 mm

BLDA Tool style code Position A

C1A Insert thickness Pos. A

3.18 mm

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

D1A Corner radius Pos. A

2 mm

D6A Wiper edge length Pos. A

1.4 mm

DC Cutting diameter

25 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

SAD01200115

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

end mills

HAND Cutting direction

R - Right

ID Technical product number

434159

Interface codes

J6 /

ISISO A Indicator for ISO cutting plate Pos.A

ISYC Subclass

307-01 - Non-centre cutting single row end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAD Screw mounting

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0120

LOC-03 DCONMS Diameter

12.5 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAD01200115

MILTTY Mill tool type ISO

J - Face and side and mill (one more then one indexable insert pro cutting edeg) 90°

Name Identifying order number

AJX08R253AM1235

OAL Overall length

57 mm

RMPX Ramping angle maximum

2 Degree

THSZMS Connection thread nominal size machine side

M12

Working process

No working processes available

WT Weight of item

0.1 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
