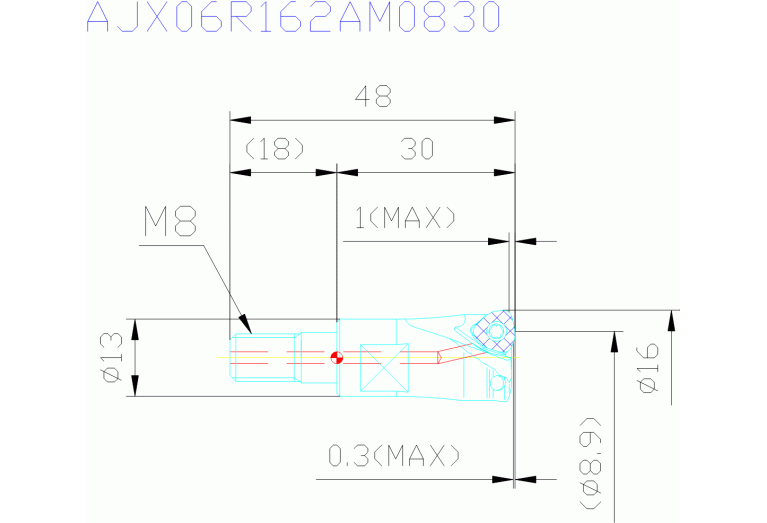

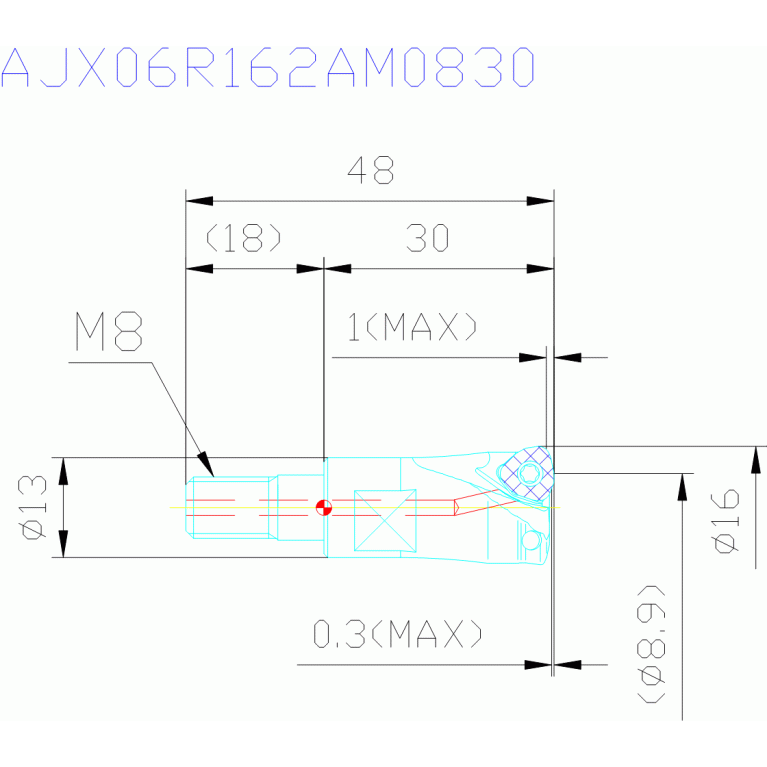

AJX06R162AM0830
AJX06R162AM0830
Артикул:
453481
В наличии
Характеристики
A2A Clearance angle major Pos. A
13 Degree
APMX Depth of cut maximum
0.6 mm
B3A Inscribed circle diameter Pos. A
6.35 mm
BLDA Tool style code Position A
99
C1A Insert thickness Pos. A
2.78 mm
CCONMS Connection count machine side
1
CICT Cutting item count
2
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
MI - Mitsubishi Materials
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
D1A Corner radius Pos. A
1.5 mm
D6A Wiper edge length Pos. A
1.2 mm
DC Cutting diameter
16 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/1/2022
DIN
SAD00800115
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
2
FamilyProducts
end mills
HAND Cutting direction
R - Right
ID Technical product number
453481
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
307-01 - Non-centre cutting single row end mill
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SAD Screw mounting
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0080
LOC-03 DCONMS Diameter
8.5 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SAD00800115
MILTTY Mill tool type ISO
J - Face and side and mill (one more then one indexable insert pro cutting edeg) 90°
Name Identifying order number
AJX06R162AM0830
OAL Overall length
48 mm
RMPX Ramping angle maximum
3 Degree
THSZMS Connection thread nominal size machine side
M8
Working process
No working processes available
WT Weight of item
0.1 kg
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
