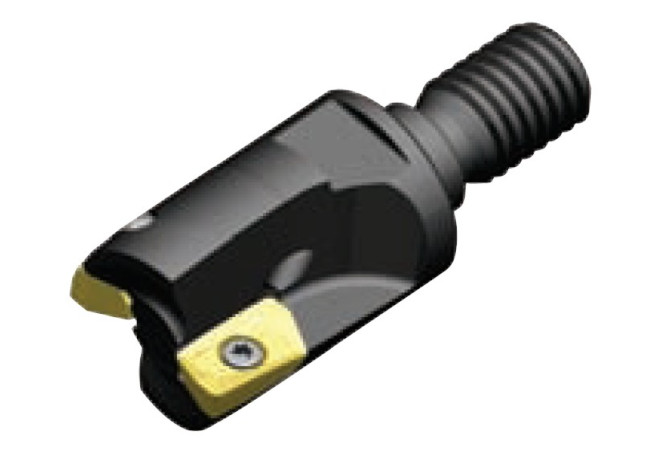

Главная Каталог продукции Toolunited 14 307-01 - Non-centre cutting single row end mill 40A06R040M16ED10

40A06R040M16ED10

40A06R040M16ED10 40A06R040M16ED10 40A06R040M16ED10

40A06R040M16ED10

Kennametal
Артикул: 3745725
В наличии
В корзину
Описание
Характеристики

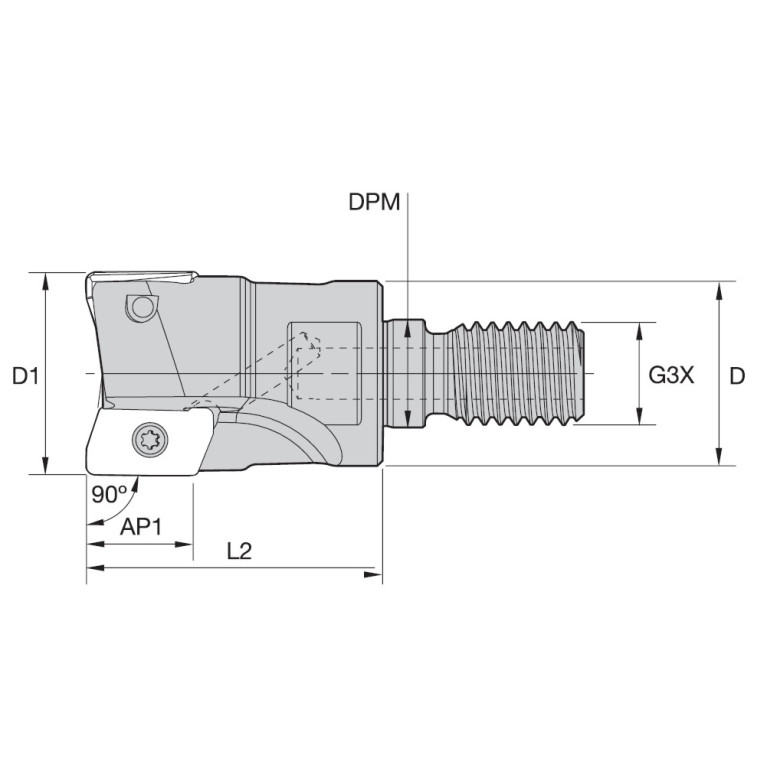

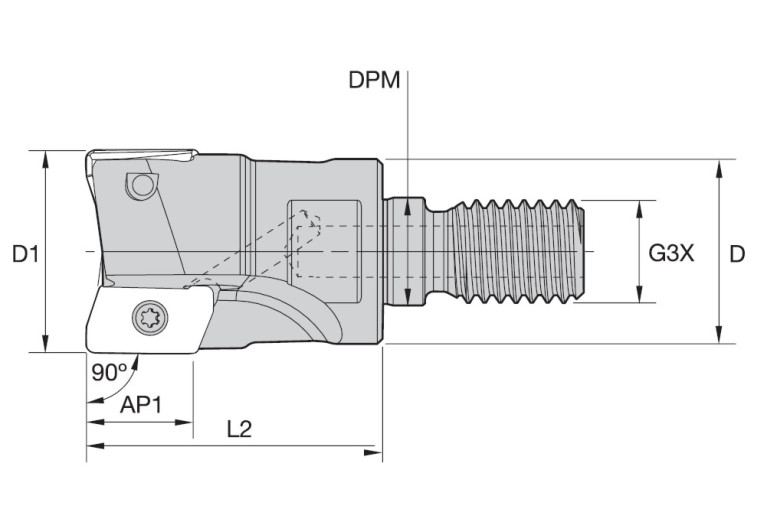

APMX Depth of cut maximum
9.9 mm
BD Body diameter
29 mm
CCONMS Connection count machine side
1
CICT Cutting item count
6
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KH - Kennametal
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
40 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/4/2011
DIN
KH-M16
DN Neck diameter
17 mm
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
6
FamilyProducts
Indexable End Mills - Screw-On - Metric
HAND Cutting direction
R - Right
ID Technical product number
3745725
Interface codes
J6 /
ISYC Subclass
307-01 - Non-centre cutting single row end mill
KAPR Tool cutting edge angle
90 Degree
LH Head length
40 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SAD Screw mounting
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0160
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
KH-M16
LPR Protruding length
40 mm
LS Shank length
24 mm
Name Identifying order number
40A06R040M16ED10
OAL Overall length
64 mm
RMPX Ramping angle maximum
2 Degree
RPMX Rotational speed maximum
31600 1/min
Working process
No working processes available
WT Weight of item
0.23 kg
ZEFF Face effective cutting edge count
6
ZEFP Peripheral effective cutting edge count
6
