Главная Каталог продукции Toolunited 14 307-01 - Non-centre cutting single row end mill 3M E90AX D25-3-C25-13-C

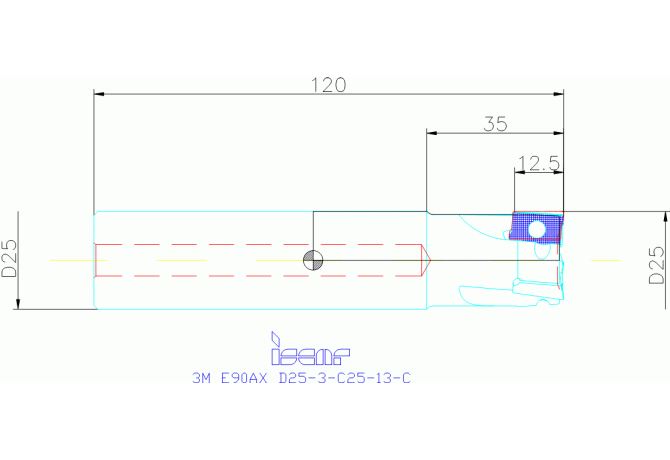

3M E90AX D25-3-C25-13-C

3M E90AX D25-3-C25-13-C 3M E90AX D25-3-C25-13-C

3M E90AX D25-3-C25-13-C

Iscar
Артикул: 3102719
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
12.5 mm
B1A Cutting edge length Pos. A
14.12 mm
B2A Insert width Pos. A
8.4 mm
B3A Inscribed circle diameter Pos. A
8.4 mm
BLDA Tool style code Position A
4
C1A Insert thickness Pos. A
4.55 mm
CCONMS Connection count machine side
1
CICT Cutting item count
3
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
D1A Corner radius Pos. A
0.6 mm
D4A Cutting edge angle major Pos. A
90 Degree
D6A Wiper edge length Pos. A
2.1 mm
DC Cutting diameter
25 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2014
DIN
ZYL02500115
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
3
FamilyProducts
3M E90AX D25-3-C25-13-C
HAND Cutting direction
R - Right
ID Technical product number
3102719
Interface codes
J6 /
ISYC Subclass
307-01 - Non-centre cutting single row end mill
KAPR Tool cutting edge angle
90 Degree
LF Functional length
120 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0250
LOC-03 DCONMS Diameter
25 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02500115
LU Usable length
35 mm
Name Identifying order number
3M E90AX D25-3-C25-13-C
OAL Overall length
120 mm
Working process
No working processes available
WT Weight of item
0.32 kg
ZEFP Peripheral effective cutting edge count
3
