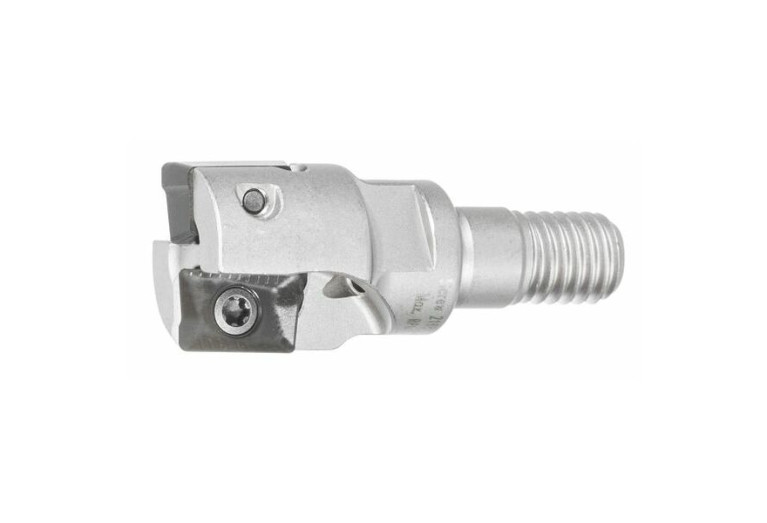

Главная Каталог продукции Toolunited 14 307-01 - Non-centre cutting single row end mill 215870 15,7/2

215870 15,7/2

215870 15,7/2 215870 15,7/2 215870 15,7/2

215870 15,7/2

Hoffmann Group
Артикул: 215870 15,7/2
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
4.8 mm
BD Body diameter
15.2 mm
BLDA Tool style code Position A
5
CCONMS Connection count machine side
1
CICT Cutting item count
2
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
15.7 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
SAD00800115
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
2
FamilyProducts
GARANT 90° indexable face mill MTC
GAMF Rake angle radial
2.5 Degree
GAMP Rake angle axial
-12 Degree
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
307-01 - Non-centre cutting single row end mill
KAPR Tool cutting edge angle
90 Degree
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SAD Screw mounting
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0080
LOC-03 DCONMS Diameter
12.8 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SAD00800115
LPR Protruding length
23 mm
LU Usable length
4.8 mm
Name Identifying order number
215870 15,7/2
OAL Overall length
41 mm
THSZMS Connection thread nominal size machine side
M8
Working process
No working processes available
WT Weight of item
0.03 kg
ZEFP Peripheral effective cutting edge count
2
