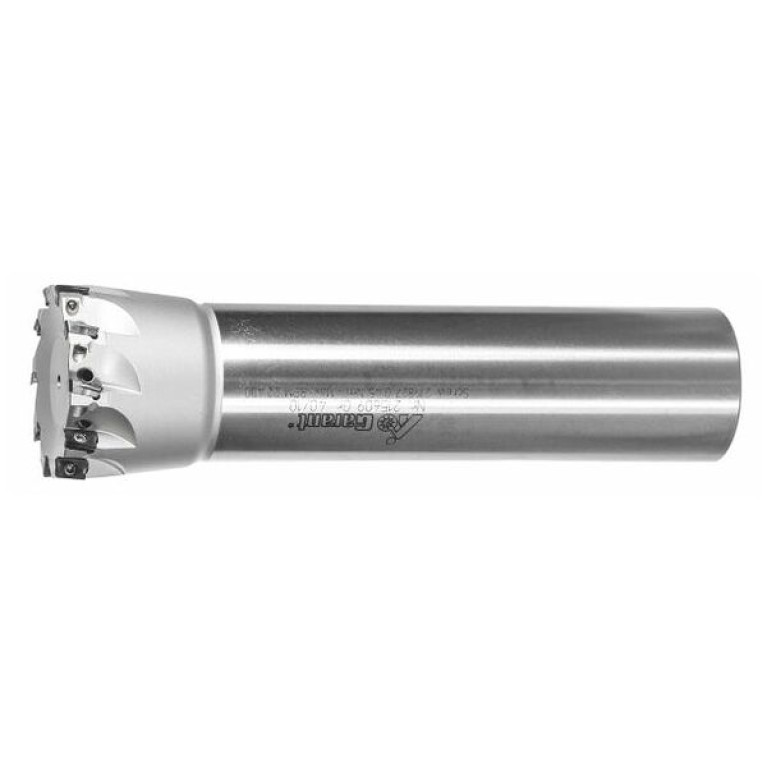

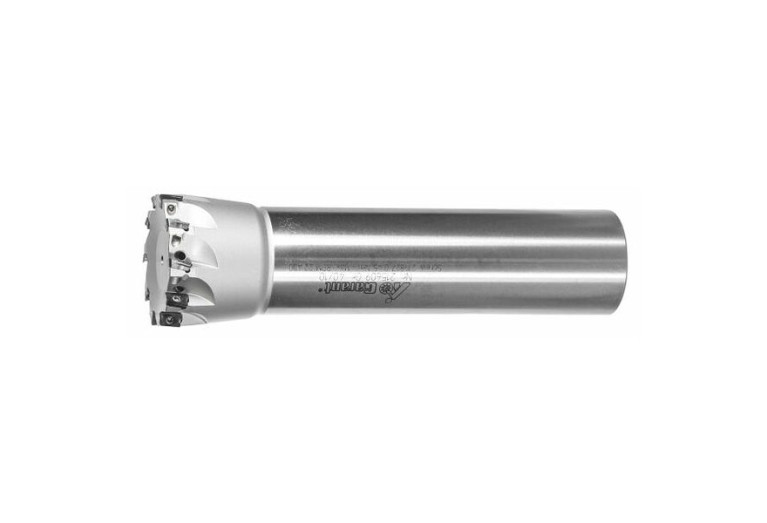

Главная Каталог продукции Toolunited 14 307-01 - Non-centre cutting single row end mill 215609 40/10

215609 40/10

215609 40/10 215609 40/10 215609 40/10

215609 40/10

Hoffmann Group
Артикул: 215609 40/10
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
85 Degree
A2A Clearance angle major Pos. A
11 Degree

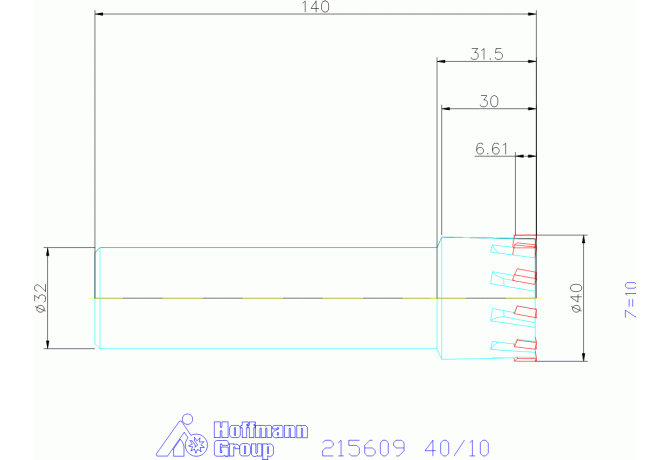

APMX Depth of cut maximum
6.61 mm
BD Body diameter
38.7 mm
BLDA Tool style code Position A
5
CCONMS Connection count machine side
1
CICT Cutting item count
10
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DC Cutting diameter
40 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
ZYL03201015
DN Neck diameter
34.2 mm
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
10
FamilyProducts
GARANT Softcut® 90° indexable face mill MTC long
GAMF Rake angle radial
11 Degree
GAMP Rake angle axial
-9.64 Degree
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
307-01 - Non-centre cutting single row end mill
KAPR Tool cutting edge angle
90 Degree
LH Head length
31.5 mm
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL03201015
LPR Protruding length
31.5 mm
LU Usable length
3 mm
Name Identifying order number
215609 40/10
OAL Overall length
140 mm
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
No working processes available
WT Weight of item
0.825 kg
ZEFF Face effective cutting edge count
10
ZEFP Peripheral effective cutting edge count
10
