215045 32/3
215045 32/3
Артикул:
215045 32/3
В наличии
Характеристики
A1A Cutting edge angle major Pos. A
90 Degree
APMX Depth of cut maximum
5 mm
BD Body diameter
29.8 mm
BLDA Tool style code Position A
2
CCONMS Connection count machine side
1
CICT Cutting item count
3
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
32 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
ZYL02501015
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
3
FamilyProducts
GARANT Indexable end mill, 90°
GAMF Rake angle radial
10 Degree
GAMP Rake angle axial
-9.7 Degree
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
307-01 - Non-centre cutting single row end mill
KAPR Tool cutting edge angle
90 Degree
LH Head length
41 mm
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0250
LOC-03 DCONMS Diameter
25 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02501015
LPR Protruding length
51 mm
LU Usable length
5 mm
Name Identifying order number
215045 32/3

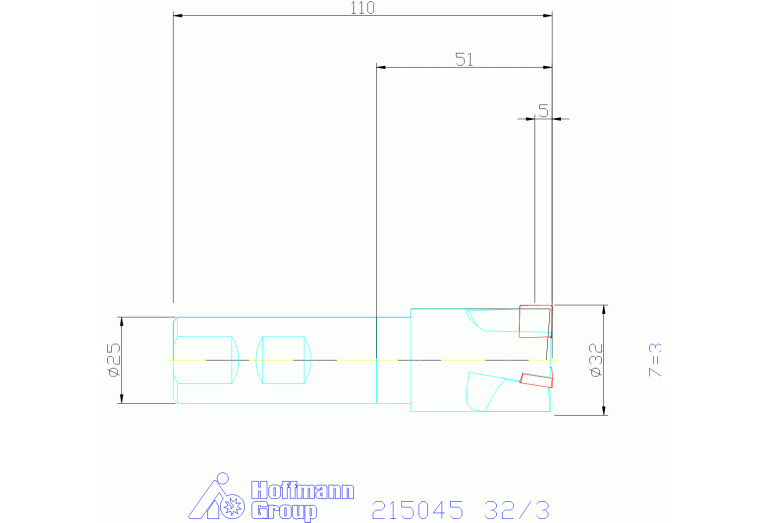

OAL Overall length
110 mm
Working process
No working processes available
WT Weight of item
0.4 kg
ZEFP Peripheral effective cutting edge count
3
