Главная Каталог продукции Toolunited 14 307-01 - Non-centre cutting single row end mill 1TJ1C020025W4R00

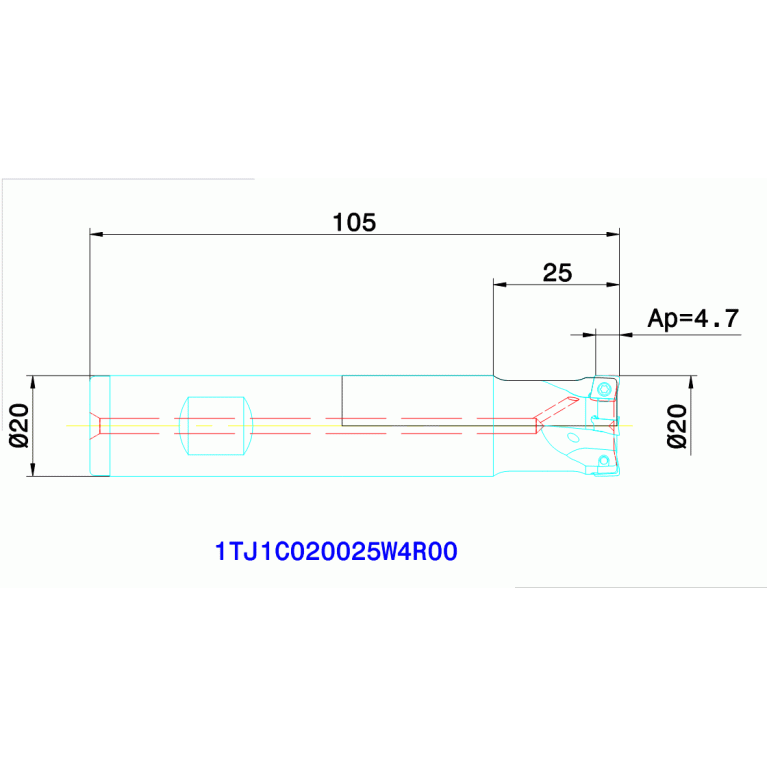

1TJ1C020025W4R00

1TJ1C020025W4R00 1TJ1C020025W4R00 1TJ1C020025W4R00 1TJ1C020025W4R00

1TJ1C020025W4R00

Ingersoll
Артикул: 6126550
В наличии
В корзину
Описание
Характеристики
CCONMS Connection count machine side
1
CICT Cutting item count
4
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DC Cutting diameter
20 mm
DCP Data chip provision
0 - Without data chip
Delivery state
NL - Discontinued
DIN
ZYL02001015
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
4
FamilyProducts
End Mill 1TJ1C...W
HAND Cutting direction
R - Right
ID Technical product number
6126550
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
307-01 - Non-centre cutting single row end mill
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0200
LOC-03 DCONMS Diameter
20 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02001015
Name Identifying order number
1TJ1C020025W4R00
OAL Overall length
105 mm
RMPX Ramping angle maximum
3 Degree
Working process
No working processes available
WT Weight of item
0.23 kg
ZEFF Face effective cutting edge count
4
ZEFP Peripheral effective cutting edge count
4
