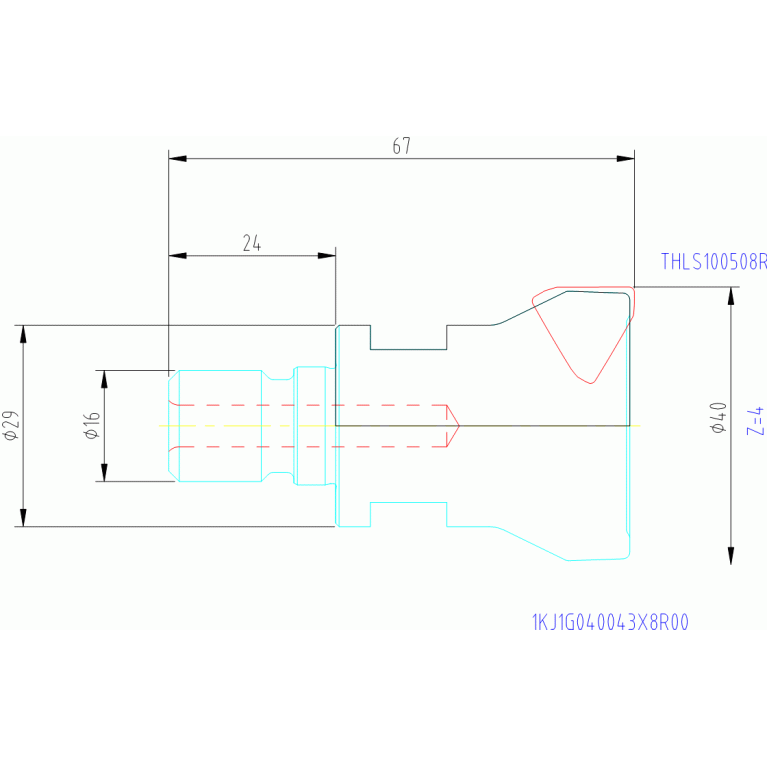

1KJ1G040043X8R00
1KJ1G040043X8R00
Артикул:
3031304
В наличии
Характеристики
BLDA Tool style code Position A
1
CCONMS Connection count machine side
2
CICT Cutting item count
4
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DC Cutting diameter
40 mm
DCP Data chip provision
0 - Without data chip
Delivery state
LL - Stock limited
DIN
MOD01600115
DN Neck diameter
29 mm
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
4
FamilyProducts
End Mill 1KJ1G...X
HAND Cutting direction
R - Right
ID Technical product number
3031304
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
307-01 - Non-centre cutting single row end mill
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
MOD
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0160
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
MOD01600115
Name Identifying order number
1KJ1G040043X8R00
OAL Overall length
67 mm
RMPX Ramping angle maximum
2 Degree
Working process
No working processes available
WT Weight of item
0.22 kg
ZEFP Peripheral effective cutting edge count
4
