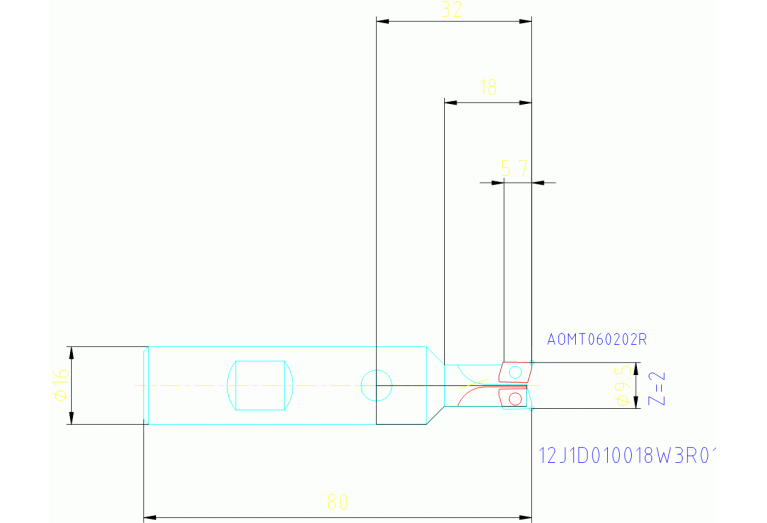

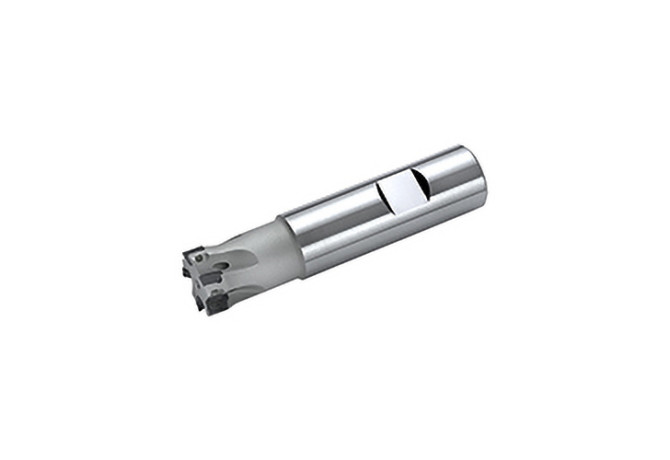

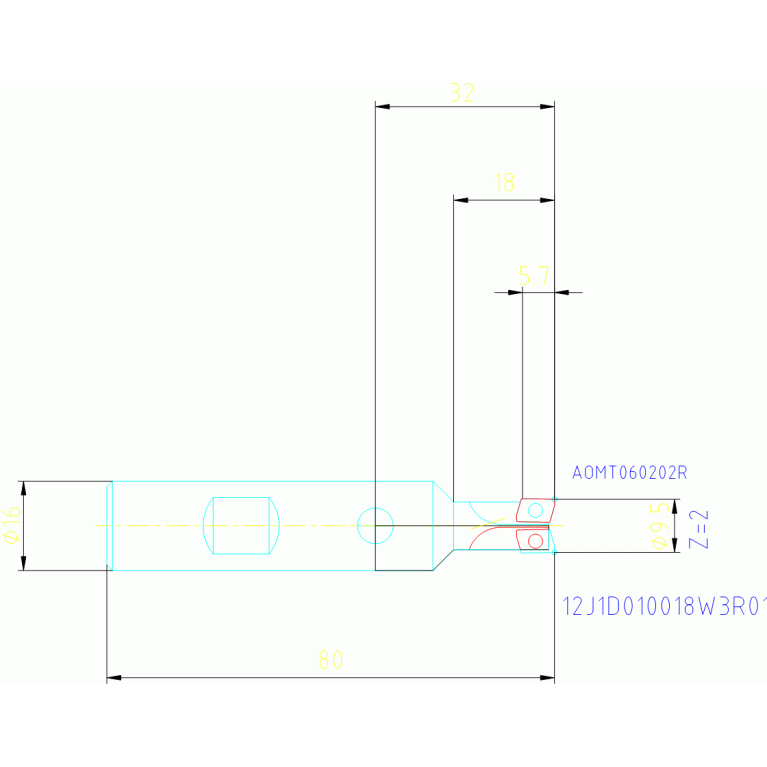

Главная Каталог продукции Toolunited 14 307-01 - Non-centre cutting single row end mill 12J1D010018W3R01

12J1D010018W3R01

12J1D010018W3R01 12J1D010018W3R01 12J1D010018W3R01 12J1D010018W3R01

12J1D010018W3R01

Ingersoll
Артикул: 3018514
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
5.7 mm
CCONMS Connection count machine side
1
CICT Cutting item count
2
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DC Cutting diameter
9.5 mm
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DIN
ZYL01601015
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
2
FamilyProducts
End Mill 12J1D...W
HAND Cutting direction
R - Right
ID Technical product number
3018514
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
307-01 - Non-centre cutting single row end mill
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0160
LOC-03 DCONMS Diameter
16 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01601015
LPR Protruding length
18 mm
Name Identifying order number
12J1D010018W3R01
OAL Overall length
80 mm
RMPX Ramping angle maximum
10.5 Degree
Working process
No working processes available
WT Weight of item
0.09 kg
ZEFP Peripheral effective cutting edge count
2
