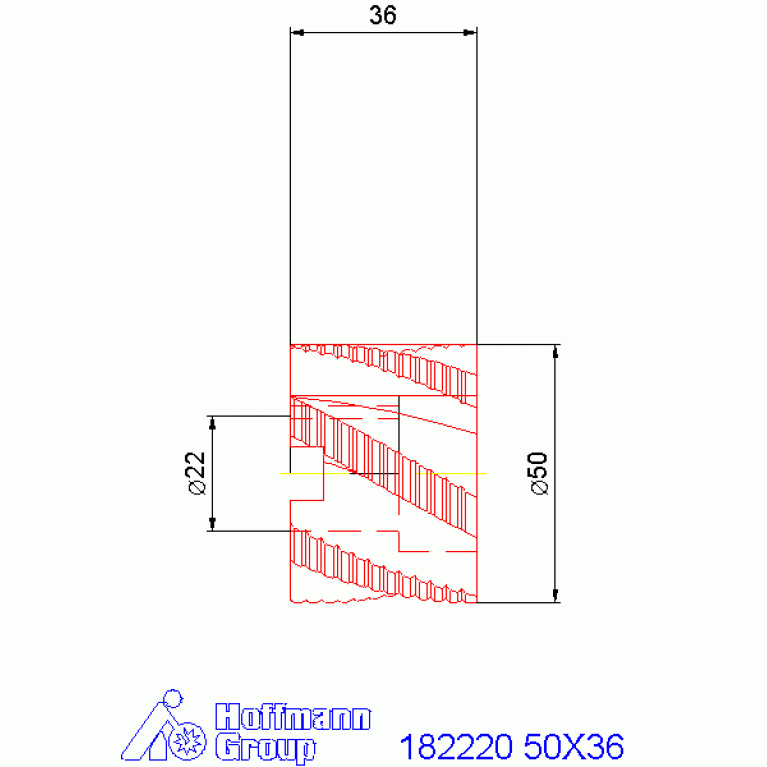

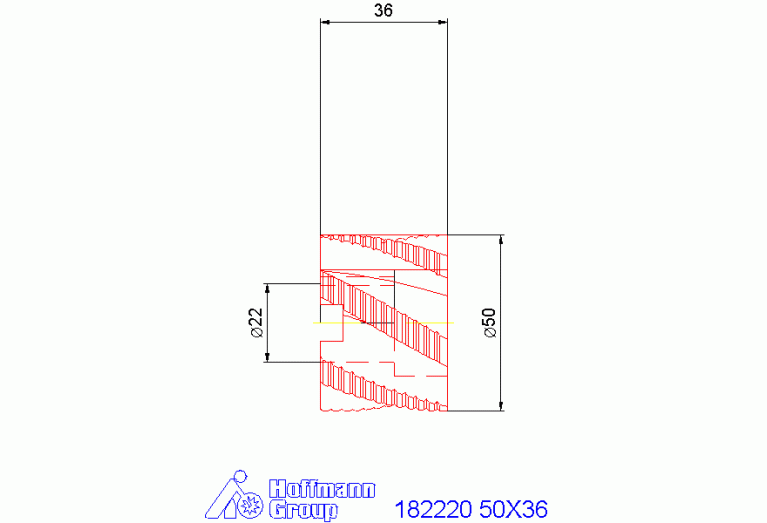

182220 50X36

Артикул: 182220 50X36

В наличии

В корзину

Описание

Характеристики

AZ Plunge depth maximum

6.9 mm

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

HOG - Hoffmann Group

CWN Cutting width minimum

36 mm

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

50 mm

DCCB Counterbore diameter connection bore

30 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

FDA02200200

F71 Number of corner designs

FamilyProducts

GARANT Roughing shell end mill NR

FHA Flute helix angle

27 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

HSS-E TiN

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

304-02 - Shell mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0220

LOC-03 DCONMS Diameter

22 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

H$07

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA02200200

Name Identifying order number

182220 50X36

OAW Overall width

36 mm

RMPX Ramping angle maximum

10 Degree

STDLET Standard letter to the standard number

STDNO Standard

DIN1880

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

0.263 kg

ZEFP Peripheral effective cutting edge count
