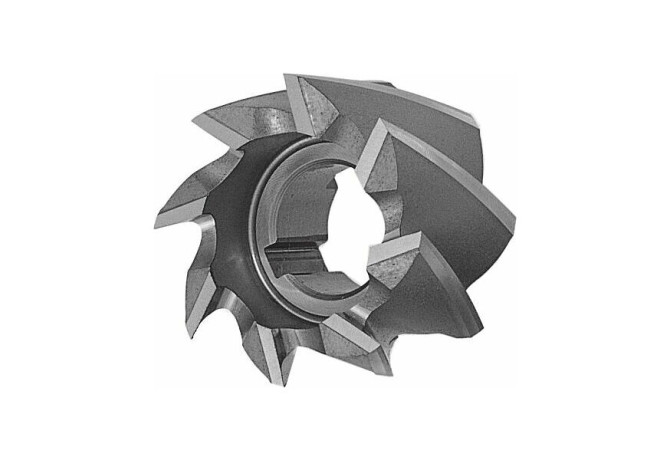

Главная Каталог продукции Toolunited 14 304-02 - Shell mill 181500 80X45

181500 80X45

Артикул: 181500 80X45

В наличии

В корзину

Описание

Характеристики

AZ Plunge depth maximum

6.9 mm

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

HOG - Hoffmann Group

CWN Cutting width minimum

45 mm

CXSC Coolant exit style code

0 - Without coolant exit

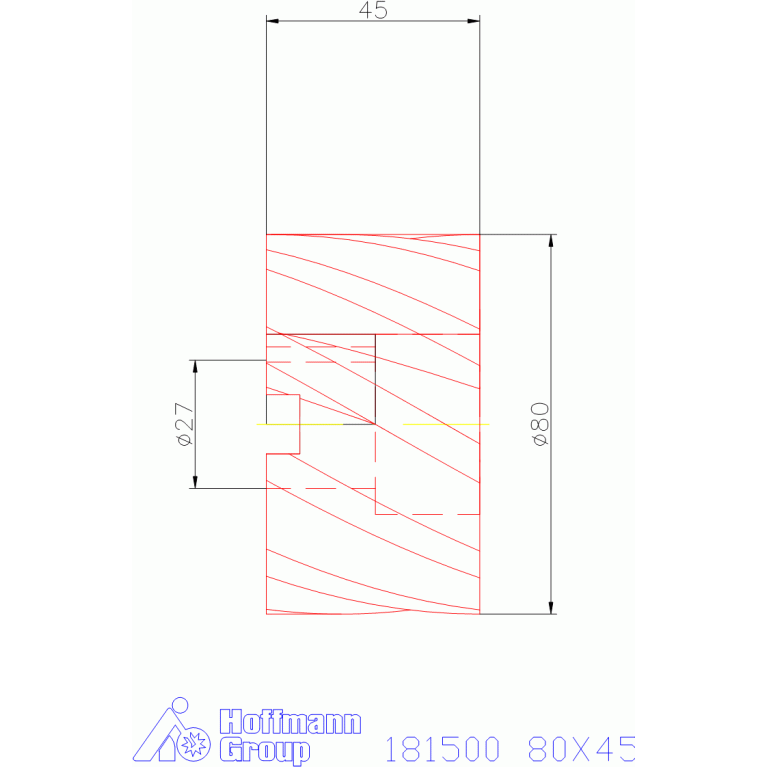

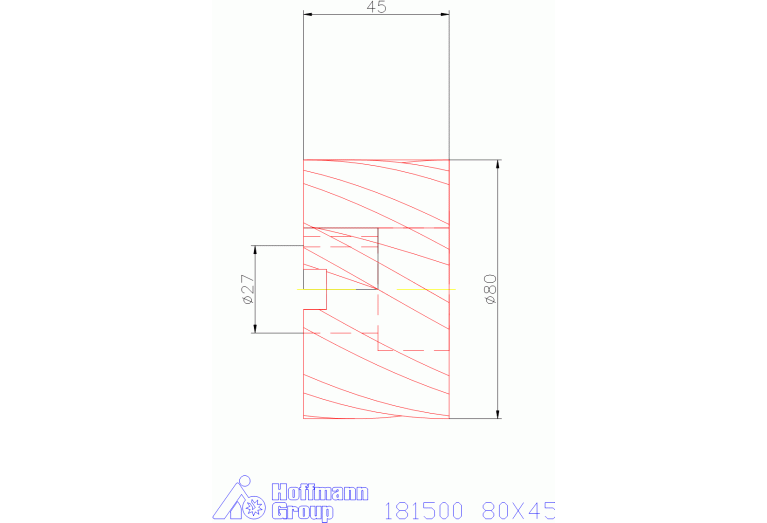

DC Cutting diameter

80 mm

DCCB Counterbore diameter connection bore

38 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

FDA02700200

F71 Number of corner designs

FamilyProducts

GARANT Shell end mill N

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

HSS-E

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

304-02 - Shell mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0270

LOC-03 DCONMS Diameter

27 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

H$07

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA02700200

Name Identifying order number

181500 80X45

OAW Overall width

45 mm

RMPX Ramping angle maximum

5 Degree

STDLET Standard letter to the standard number

STDNO Standard

DIN1880

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

0.807 kg

ZEFP Peripheral effective cutting edge count
