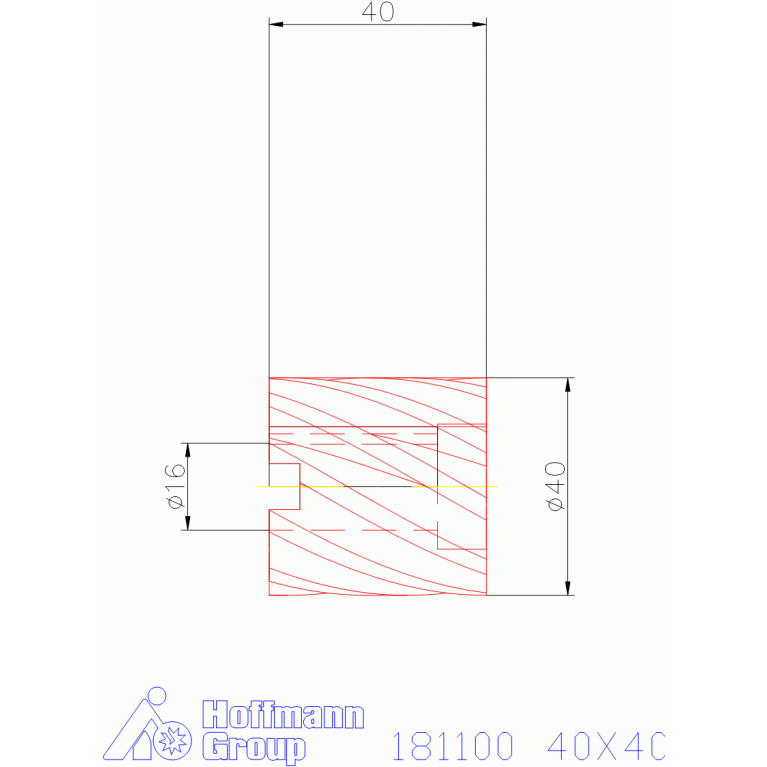

181100 40X40
181100 40X40
Артикул:
181100 40X40
В наличии
Характеристики
AZ Plunge depth maximum
4.5 mm
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
HOG - Hoffmann Group
CWN Cutting width minimum
40 mm
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
40 mm
DCCB Counterbore diameter connection bore
23 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
FDA01600200
F71 Number of corner designs
1
FamilyProducts
GARANT Shell end mill H
FHA Flute helix angle
20 Degree
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
HSS-E
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
304-02 - Shell mill
LOC-03 CCFMS Connection code form
12
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0160
LOC-03 DCONMS Diameter
16 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
H$07
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA01600200
Name Identifying order number
181100 40X40
OAW Overall width
40 mm
RMPX Ramping angle maximum
7 Degree
STDNO Standard
DIN841
TCDCONMS ISO-tolerance class shank diameter
H7
Working process
No working processes available
WT Weight of item
0.223 kg
ZEFP Peripheral effective cutting edge count
10
