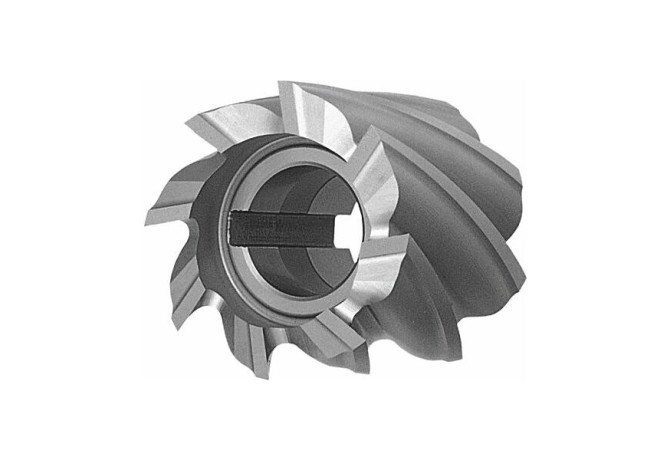

Главная Каталог продукции Toolunited 14 304-02 - Shell mill 181000 50X25

181000 50X25

Артикул: 181000 50X25

В наличии

В корзину

Описание

Характеристики

AZ Plunge depth maximum

5.3 mm

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

HOG - Hoffmann Group

CWN Cutting width minimum

25 mm

CXSC Coolant exit style code

0 - Without coolant exit

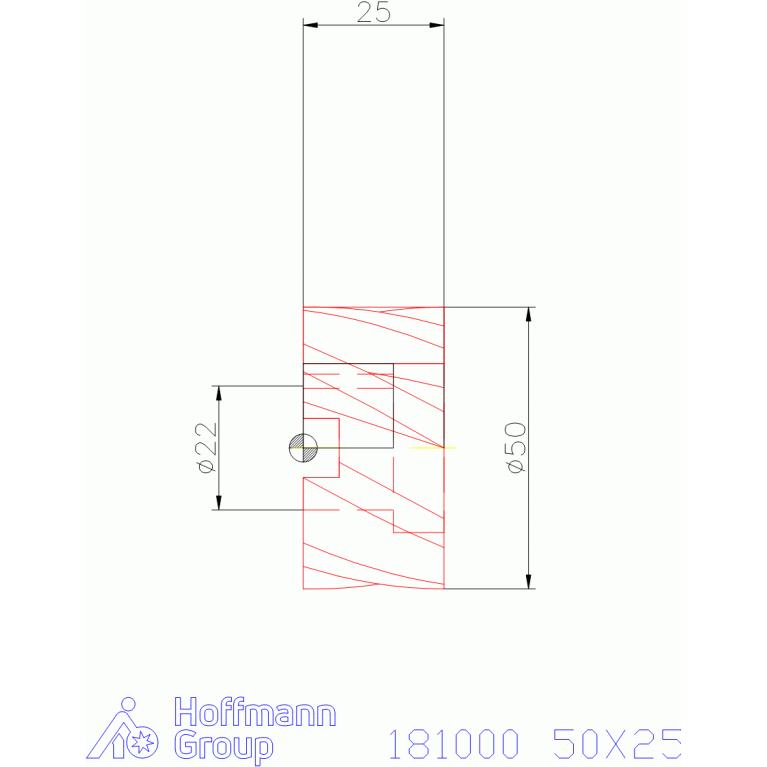

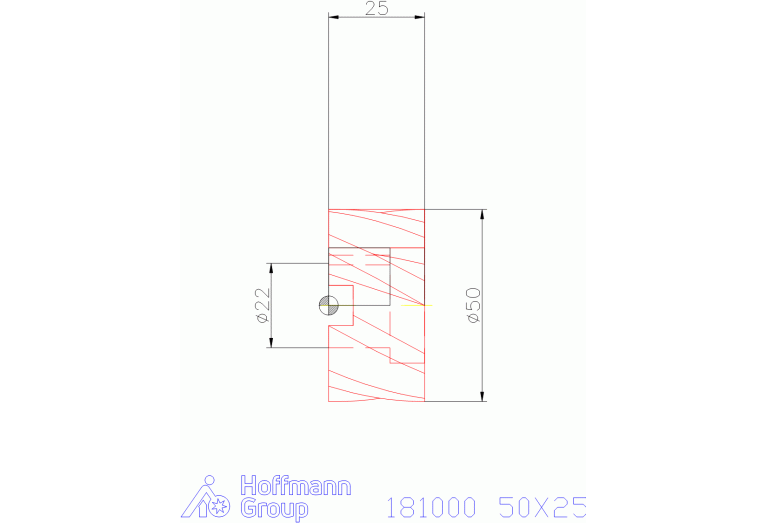

DC Cutting diameter

50 mm

DCCB Counterbore diameter connection bore

30 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

FDA02200200

F71 Number of corner designs

FamilyProducts

GARANT Shell end mill N

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

HSS-E

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

304-02 - Shell mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0220

LOC-03 DCONMS Diameter

22 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

H$07

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA02200200

Name Identifying order number

181000 50X25

OAW Overall width

25 mm

RMPX Ramping angle maximum

7 Degree

STDNO Standard

DIN841

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

0.189 kg

ZEFP Peripheral effective cutting edge count
