Главная Каталог продукции Toolunited 14 303-01 - Non-centre cutting end mill 209522 6

209522 6

Артикул: 209522 6

В наличии

В корзину

Описание

Характеристики

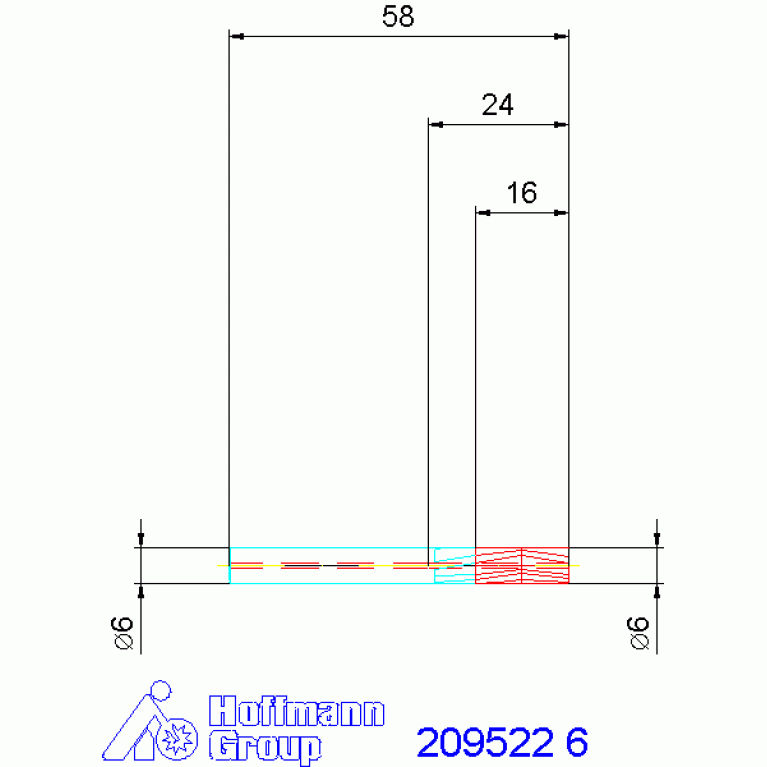

APMX Depth of cut maximum

16 mm

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

2 - With Coolant exit, radial

DC Cutting diameter

6 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

ZYL00600115

F71 Number of corner designs

FamilyProducts

GARANT Solid carbide end mill with internal coolant supply

FHA Flute helix angle

10 Degree

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-01 - Non-centre cutting end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00600115

LPR Protruding length

24 mm

MILTTY Mill tool type ISO

G - Side end mill (one or more indexable insert pro cutting edge) 90°

Name Identifying order number

209522 6

OAL Overall length

58 mm

RMPX Ramping angle maximum

0 Degree

Working process

No working processes available

WT Weight of item

0.02 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
