209522 12
209522 12
Артикул:
209522 12
В наличии
Характеристики

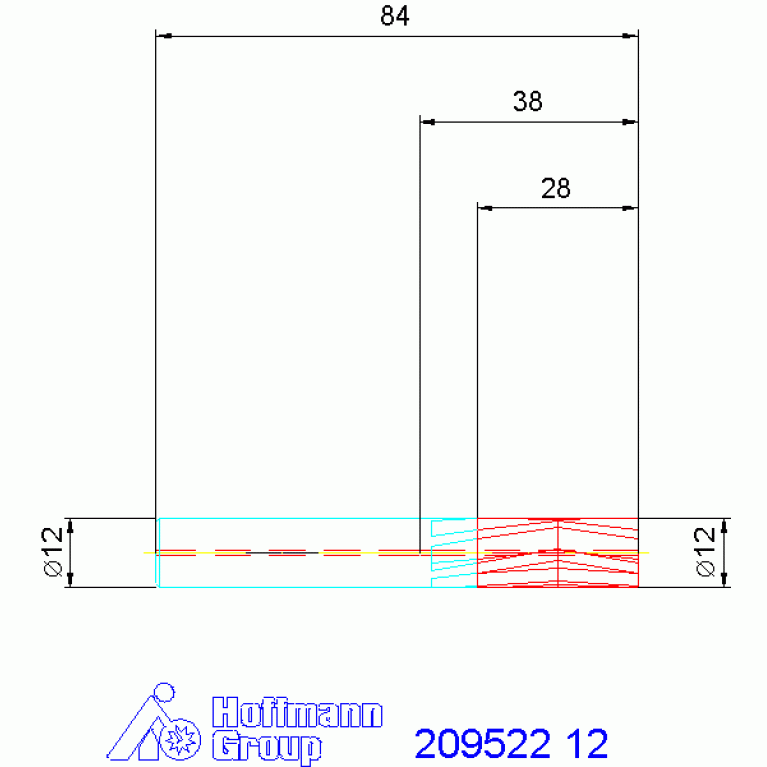

APMX Depth of cut maximum
28 mm
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
2 - With Coolant exit, radial
DC Cutting diameter
12 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
ZYL01200115
F71 Number of corner designs
1
FamilyProducts
GARANT Solid carbide end mill with internal coolant supply
FHA Flute helix angle
10 Degree
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
303-01 - Non-centre cutting end mill
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0120
LOC-03 DCONMS Diameter
12 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01200115
LPR Protruding length
38 mm
MILTTY Mill tool type ISO
G - Side end mill (one or more indexable insert pro cutting edge) 90°
Name Identifying order number
209522 12
OAL Overall length
84 mm
RMPX Ramping angle maximum
0 Degree
Working process
No working processes available
WT Weight of item
0.096 kg
ZEFF Face effective cutting edge count
6
ZEFP Peripheral effective cutting edge count
6
