203540 25
203540 25
Артикул:
203540 25
В наличии
Характеристики

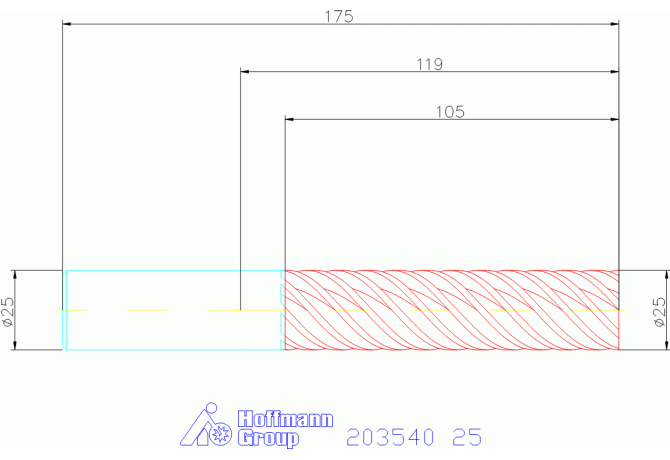

APMX Depth of cut maximum
105 mm
BLQ Balance quality code
G2.5
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
TiAlN
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
25 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
ZYL02500105
F71 Number of corner designs
1
FamilyProducts
GARANT Solid carbide high precision end mill
FHA Flute helix angle
48 Degree
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
VHM TiAlN
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
303-01 - Non-centre cutting end mill
LH Head length
106.3 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0250
LOC-03 DCONMS Diameter
25 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02500105
LPR Protruding length
119 mm
MILTTY Mill tool type ISO
G - Side end mill (one or more indexable insert pro cutting edge) 90°
Name Identifying order number
203540 25
OAL Overall length
175 mm
RMPX Ramping angle maximum
0 Degree
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
FEC - Square shoulder milling
WT Weight of item
1.766 kg
ZEFF Face effective cutting edge count
8
ZEFP Peripheral effective cutting edge count
8
