Главная Каталог продукции Toolunited 14 303-01 - Non-centre cutting end mill 203282 20

203282 20

Артикул: 203282 20

В наличии

В корзину

Описание

Характеристики

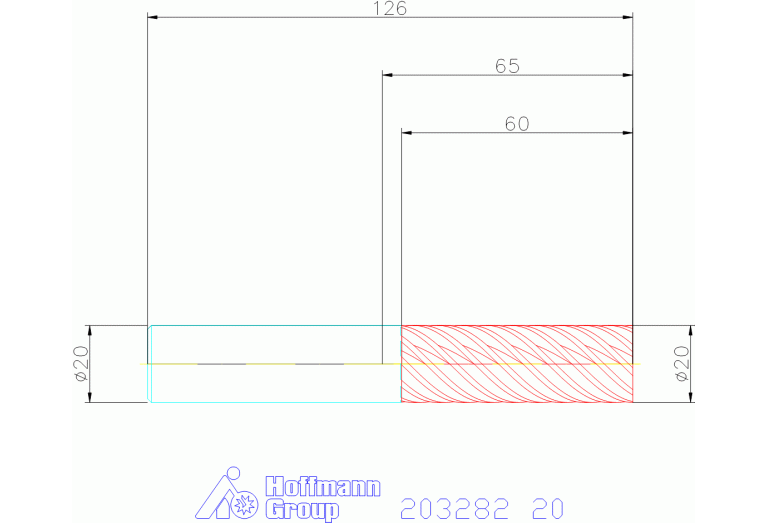

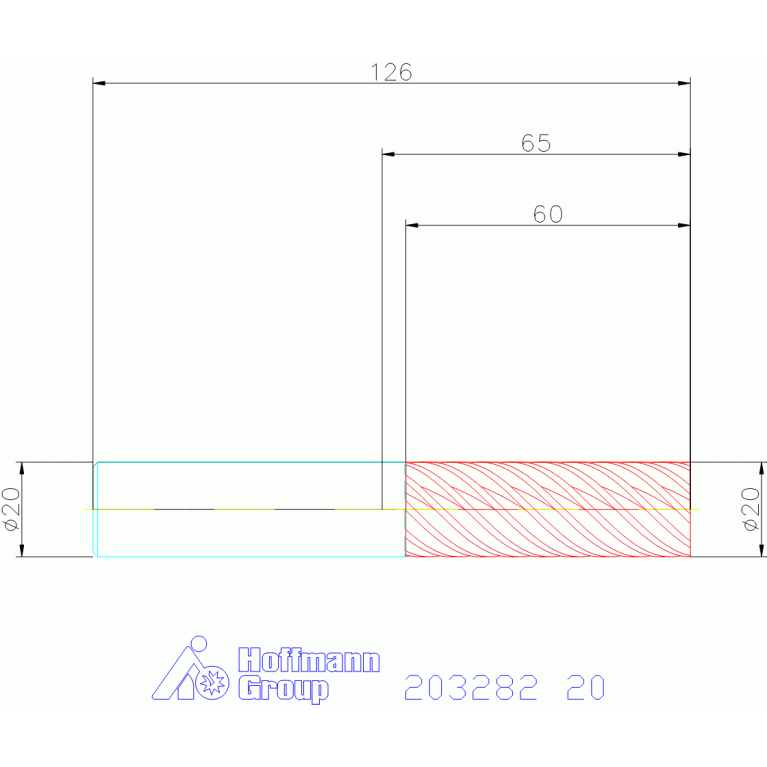

APMX Depth of cut maximum

60 mm

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

20 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

ZYL02000105

F71 Number of corner designs

FamilyProducts

GARANT Solid carbide end mill HPC

FHA Flute helix angle

45 Degree

FHH Flute helix hand

R - Hand of helix right

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-01 - Non-centre cutting end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0200

LOC-03 DCONMS Diameter

20 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02000105

LPR Protruding length

65 mm

MILTTY Mill tool type ISO

G - Side end mill (one or more indexable insert pro cutting edge) 90°

Name Identifying order number

203282 20

OAL Overall length

126 mm

RMPX Ramping angle maximum

0 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

0.534 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
