198100 40
198100 40
Артикул:
198100 40
В наличии
Характеристики
APMX Depth of cut maximum
125 mm
AZ Plunge depth maximum
0 mm
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
40 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
MKG00401085
DN Neck diameter
39.5 mm
F71 Number of corner designs
1
FamilyProducts
Morse taper shank end mill long GARANT
FHA Flute helix angle
40 Degree
GRDMFG Grade manufacturers designation
HSS-E
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
303-01 - Non-centre cutting end mill
LH Head length
125 mm
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
MKG Morse taper
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0040
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
MKG00401085
LPR Protruding length
170.5 mm
MILTTY Mill tool type ISO
G - Side end mill (one or more indexable insert pro cutting edge) 90°
Name Identifying order number
198100 40

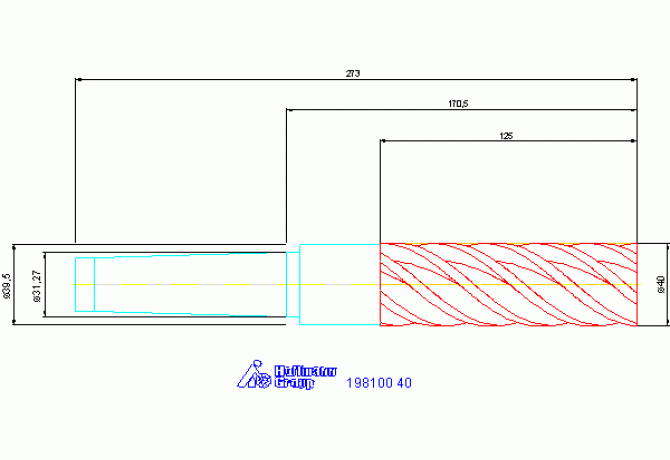

OAL Overall length
273 mm
RMPX Ramping angle maximum
0 Degree
Working process
No working processes available
WT Weight of item
1.68 kg
ZEFP Peripheral effective cutting edge count
6
