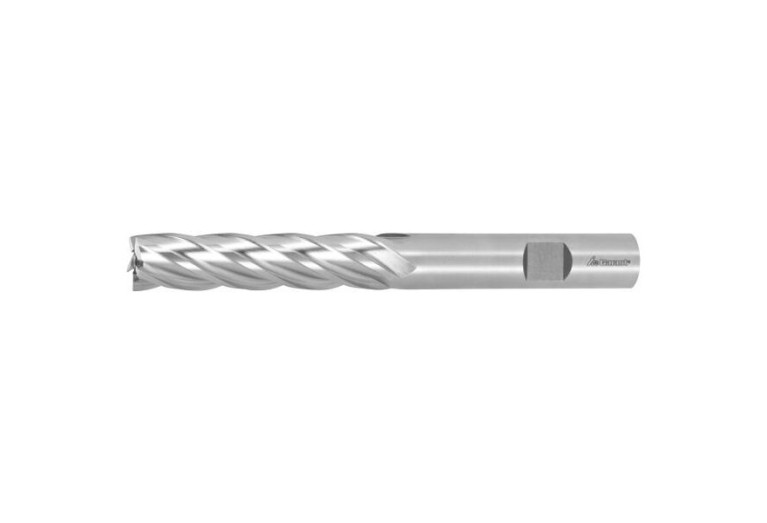

Главная Каталог продукции Toolunited 14 303-01 - Non-centre cutting end mill 191530 6

191530 6

191530 6 191530 6 191530 6

191530 6

Hoffmann Group
Артикул: 191530 6
В наличии
В корзину
Описание
Характеристики

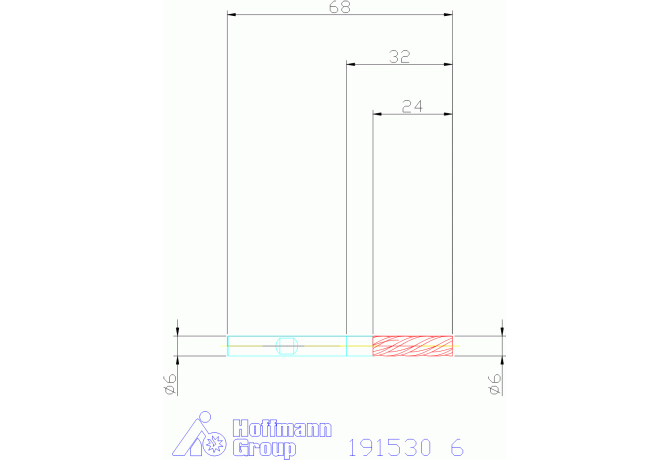

APMX Depth of cut maximum
24 mm
AZ Plunge depth maximum
1.28 mm
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
6 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
ZYL00601005
F71 Number of corner designs
1
FamilyProducts
GARANT End mill
FHA Flute helix angle
30 Degree
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
HSS Co8
HAND Cutting direction
L - Left
Interface codes
J6 /
ISYC Subclass
303-01 - Non-centre cutting end mill
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0060
LOC-03 DCONMS Diameter
6 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00601005
LPR Protruding length
32 mm
MILTTY Mill tool type ISO
J - Face and side and mill (one more then one indexable insert pro cutting edeg) 90°
Name Identifying order number
191530 6
OAL Overall length
68 mm
RMPX Ramping angle maximum
52 Degree
STDLET Standard letter to the standard number
B
STDNO Standard
DIN844
Working process
No working processes available
WT Weight of item
0.015 kg
ZEFF Face effective cutting edge count
5
ZEFP Peripheral effective cutting edge count
5
