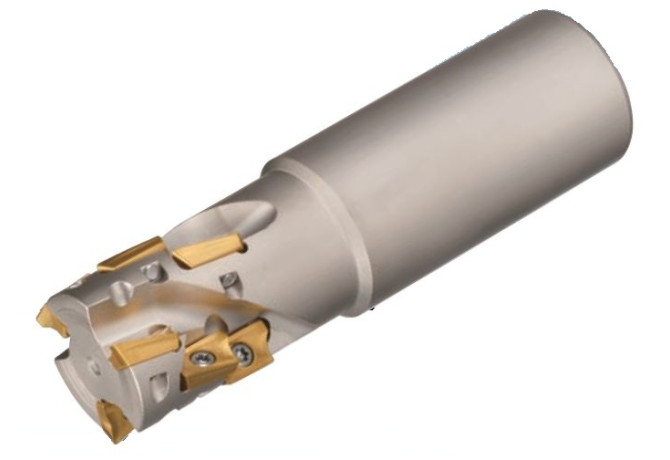

Главная Каталог продукции Toolunited 14 307-07 - Non-centre cutting multiple rows end mill WRX3040RH27W40

WRX3040RH27W40

Артикул: WRX3040RH27W40

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

27 mm

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

SU - Sumitomo

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

40 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

9/27/2011

DIN

ZYL04001015

FamilyProducts

WRX3000-Schaftfräser mit AXMT 17mm Platten

ID Technical product number

WRX3040RH27W40

Interface codes

J6 /

ISYC Subclass

307-07 - Non-centre cutting multiple rows end mill

KAPR Tool cutting edge angle

90 Degree

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0400

LOC-03 DCONMS Diameter

40 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL04001015

LPR Protruding length

60 mm

LS Shank length

120 mm

Name Identifying order number

WRX3040RH27W40

OAL Overall length

180 mm

Working process

FEC - Square shoulder milling,FNU - Groove milling

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
