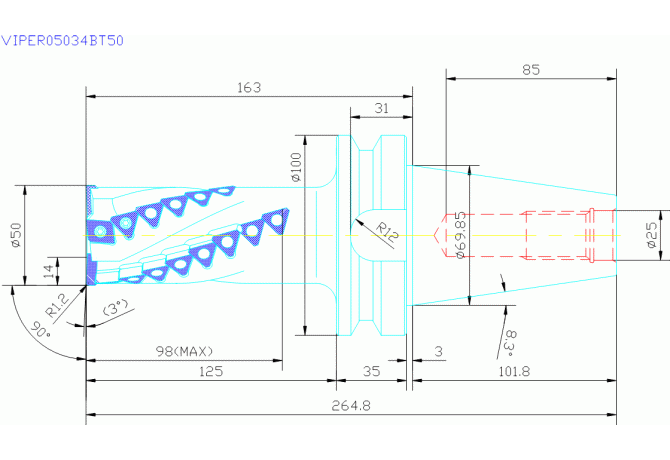

VIPER05034BT50

Артикул: VIPER05034BT50

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

0 - Adjustment not possible

APMX Depth of cut maximum

98 mm

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

50 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

SKG05005085

FamilyProducts

ENDMILL

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

307-07 - Non-centre cutting multiple rows end mill

KAPR Tool cutting edge angle

90 Degree

LF Functional length

125 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SKG steep taper shank

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0500

LOC-03 DCONMS Diameter

50 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG05005085

LPR Protruding length

125 mm

MILTTY Mill tool type ISO

H - Slotting end mill (one or more indexable insert pro cutting edge) 90°

Name Identifying order number

VIPER05034BT50

OAL Overall length

264.8 mm

Working process

FEC - Square shoulder milling,FPL - Face milling,FPR - Profile milling,FZI - Circular milling
