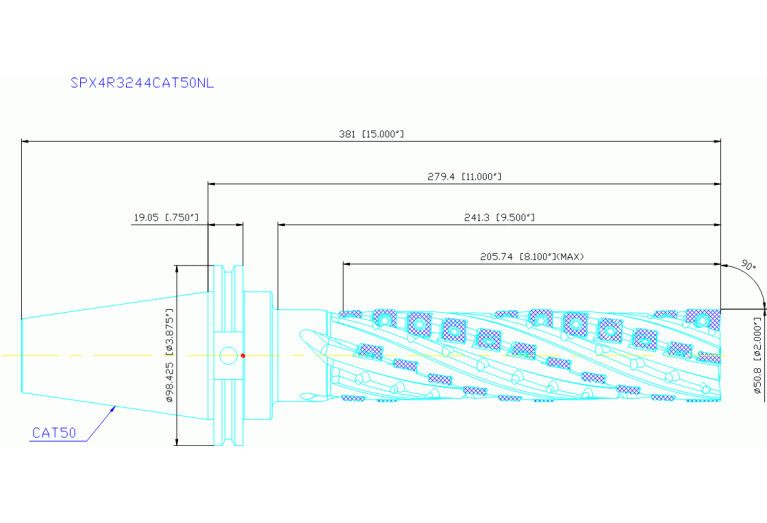

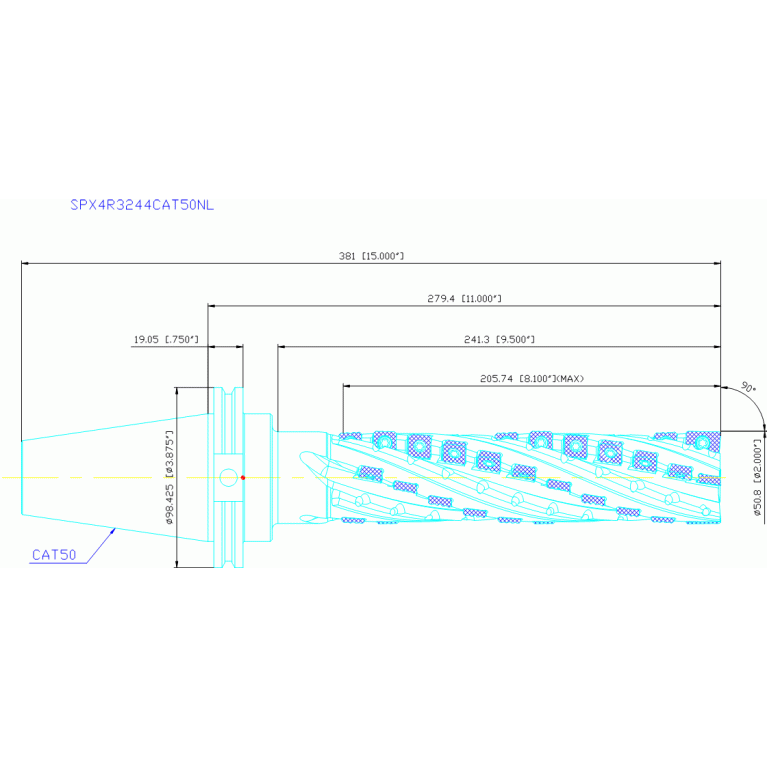

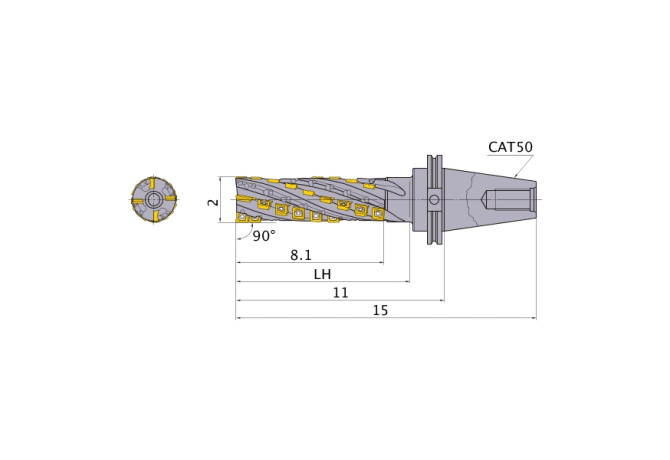

SPX4R3244CAT50NL

Артикул: 491866

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

205.74 mm

BLDA Tool style code Position A

BLDB Tool style code Position B

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

6 - With coolant supply (discharge), peripheral/decentralized via flange

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

50.8 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

SKG05003695

FamilyProducts

SPX deep shoulder mill, inch size

HAND Cutting direction

R - Right

ID Technical product number

491866

Interface codes

J6 /

ISYC Subclass

307-07 - Non-centre cutting multiple rows end mill

KAPR Tool cutting edge angle

90 Degree

LF Functional length

279.4 mm

LOC-02 BI Block index

LOC-02 MIID Master insert identification

MPMX120412-JM

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

MP1204 7R;SP1204 7N

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SKG steep taper shank

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0500

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG05003695

LPR Protruding length

279.4 mm

Name Identifying order number

SPX4R3244CAT50NL

OAL Overall length

381 mm

Working process

No working processes available

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
