Главная Каталог продукции Toolunited 14 307-07 - Non-centre cutting multiple rows end mill SPX4R06356SK50NX

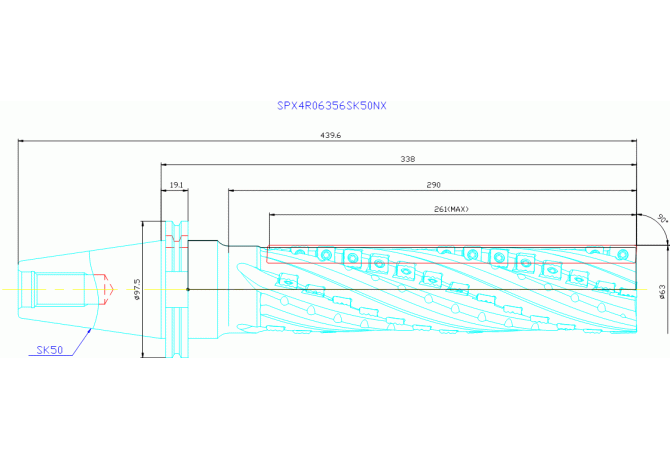

SPX4R06356SK50NX

SPX4R06356SK50NX SPX4R06356SK50NX SPX4R06356SK50NX SPX4R06356SK50NX

SPX4R06356SK50NX

Mitsubishi Materials
Артикул: 10442098
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
86 Degree
A1B Cutting edge angle major Pos. B
86 Degree
A2A Clearance angle major Pos. A
11 Degree
A2B Clearance angle major Pos. B
11 Degree
APMX Depth of cut maximum
261 mm
B1A Cutting edge length Pos. A
17.6 mm
B1B Cutting edge length Pos. B
17.6 mm
B2A Insert width Pos. A
12.7 mm
B2B Insert width Pos. B
12.7 mm
B3A Inscribed circle diameter Pos. A
12.7 mm
B3B Inscribed circle diameter Pos. B
12.7 mm
BLDA Tool style code Position A
5
BLDB Tool style code Position B
5
C1A Insert thickness Pos. A
4.83 mm
C1B Insert thickness Pos. B
4.83 mm
CCONMS Connection count machine side
1
CICT Cutting item count
56
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
MI - Mitsubishi Materials
CXSC Coolant exit style code
0 - Without coolant exit
D1A Corner radius Pos. A
1.2 mm
D1B Corner radius Pos. B
1.2 mm
DC Cutting diameter
63 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/1/2022
DIN
SKG05001085
FamilyProducts
end mills
HAND Cutting direction
R - Right
ID Technical product number
10442098
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISISO B Indicator for ISO cutting plate Pos.B
0
ISYC Subclass
307-07 - Non-centre cutting multiple rows end mill
KAPR Tool cutting edge angle
90 Degree
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SKG steep taper shank
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0500
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG05001085
MILTTY Mill tool type ISO
J - Face and side and mill (one more then one indexable insert pro cutting edeg) 90°
Name Identifying order number
SPX4R06356SK50NX
OAL Overall length
439.6 mm
Working process
No working processes available
ZEFF Face effective cutting edge count
4
ZEFP Peripheral effective cutting edge count
4
