Главная Каталог продукции Toolunited 14 307-07 - Non-centre cutting multiple rows end mill SPK D40-42-W32-10

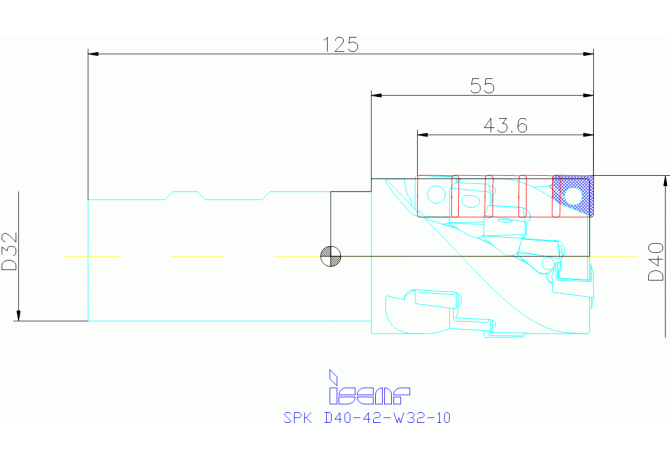

SPK D40-42-W32-10

Артикул: 3100701

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

43 mm

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

40 mm

DCP Data chip provision

0 - Without data chip

DIN

ZYL03201005

FamilyProducts

Extended Flute Endmills Carrying S/XPMT / QPMR 10... Inserts

HAND Cutting direction

R - Right

ID Technical product number

3100701

Interface codes

J6 / J61

ISO

ZYL10G3200h$06

ISYC Subclass

307-07 - Non-centre cutting multiple rows end mill

KAPR Tool cutting edge angle

90 Degree

LH Head length

55 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0320

LOC-03 DCONMS Diameter

32 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL10G3200h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03201005

LPR Protruding length

65 mm

Name Identifying order number

SPK D40-42-W32-10

OAL Overall length

125 mm

RMPX Ramping angle maximum

1.5 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

0.7 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
