Главная Каталог продукции Toolunited 14 307-07 - Non-centre cutting multiple rows end mill P290 ACK D50-4-105-W50-18

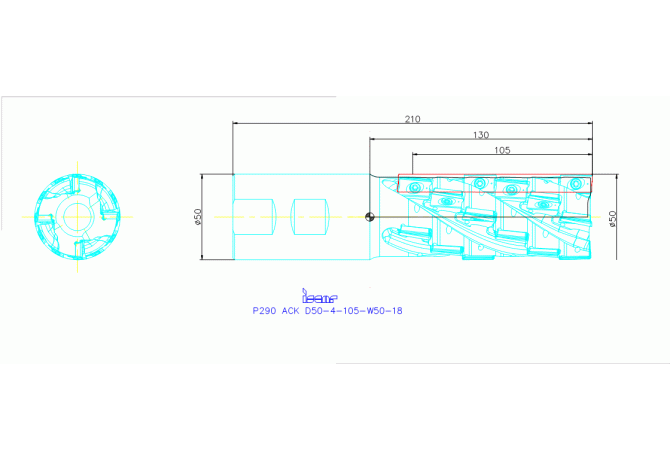

P290 ACK D50-4-105-W50-18

Артикул: 3110778

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

105 mm

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

2 - With Coolant exit, radial

DC Cutting diameter

50 mm

DCP Data chip provision

0 - Without data chip

DIN

ZYL05001015

FamilyProducts

Extended Flute Endmills Carrying 12 and 18 mm Long Edged Inserts

HAND Cutting direction

R - Right

ID Technical product number

3110778

Interface codes

J6 / J61

ISO

ZYL10G5000h$06

ISYC Subclass

307-07 - Non-centre cutting multiple rows end mill

KAPR Tool cutting edge angle

90 Degree

LH Head length

130 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0500

LOC-03 DCONMS Diameter

50 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL10G5000h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL05001015

LPR Protruding length

130 mm

Name Identifying order number

P290 ACK D50-4-105-W50-18

OAL Overall length

210 mm

RMPX Ramping angle maximum

1 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

2.23 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
