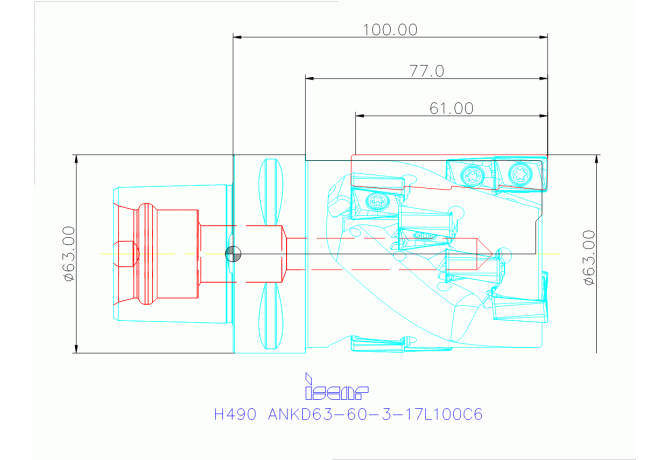

H490 ANKD63-60-3-17L100C6

H490 ANKD63-60-3-17L100C6 H490 ANKD63-60-3-17L100C6

H490 ANKD63-60-3-17L100C6

Iscar
Артикул: 3105762
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
90 Degree
A1B Cutting edge angle major Pos. B
90 Degree
A2A Clearance angle major Pos. A
0 Degree
A2B Clearance angle major Pos. B
0 Degree
APMX Depth of cut maximum
61 mm
B1A Cutting edge length Pos. A
16.7 mm
B2A Insert width Pos. A
11.2 mm
B3A Inscribed circle diameter Pos. A
11.2 mm
BLDA Tool style code Position A
4
BLDB Tool style code Position B
4
C1A Insert thickness Pos. A
10.4 mm
C1B Insert thickness Pos. B
10.4 mm
CCONMS Connection count machine side
2
CICT Cutting item count
12
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
0 - Without coolant exit
D1A Corner radius Pos. A
0.4 mm
D1B Corner radius Pos. B
0.4 mm
D4A Cutting edge angle major Pos. A
90 Degree
D4B Cutting edge angle major Pos. B
90 Degree
D6A Wiper edge length Pos. A
4.7 mm
D6B Wiper edge length Pos. B
4.7 mm
DC Cutting diameter
63 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2014
DIN
CCS06300185
FamilyProducts
H490 ANKD63-60-3-17L100C6
HAND Cutting direction
R - Right
ID Technical product number
3105762
Interface codes
J6 /
ISYC Subclass
307-07 - Non-centre cutting multiple rows end mill
KAPR Tool cutting edge angle
90 Degree
LF Functional length
100 mm
LOC-02 BI Block index
2
LOC-02 MIID Master insert identification
H490 ANKX 170604PNTR
LOC-02 ISO
IS$$550155507581120
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
IS-AN1706PN3R
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0630
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS06300185
LPR Protruding length
100 mm
LU Usable length
77 mm
Name Identifying order number
H490 ANKD63-60-3-17L100C6
Working process
FEC - Square shoulder milling
WT Weight of item
2.4 kg
ZEFF Face effective cutting edge count
3
ZEFP Peripheral effective cutting edge count
3
