Главная Каталог продукции Toolunited 14 307-07 - Non-centre cutting multiple rows end mill F5138.UW38.038.Z02.45

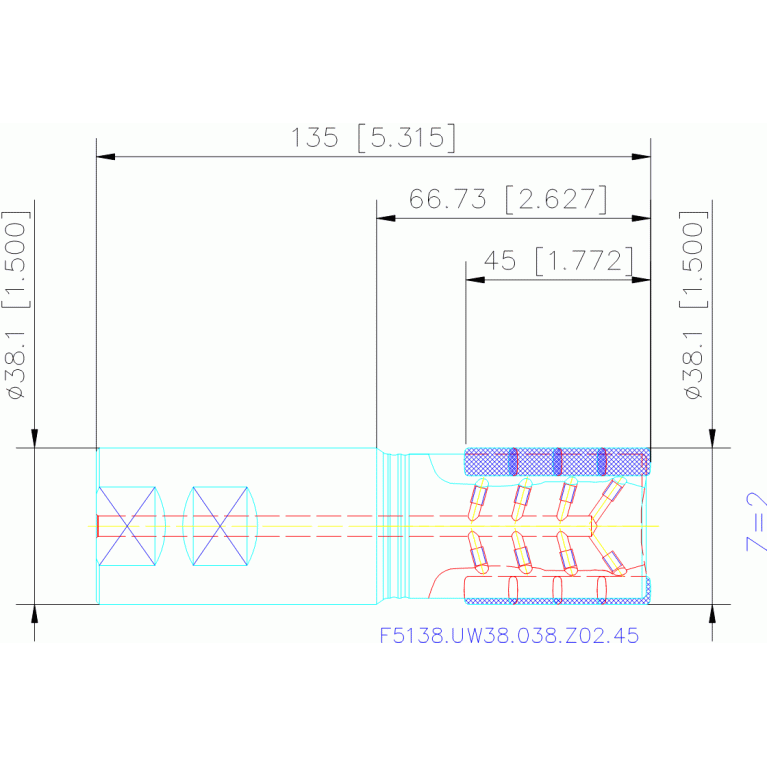

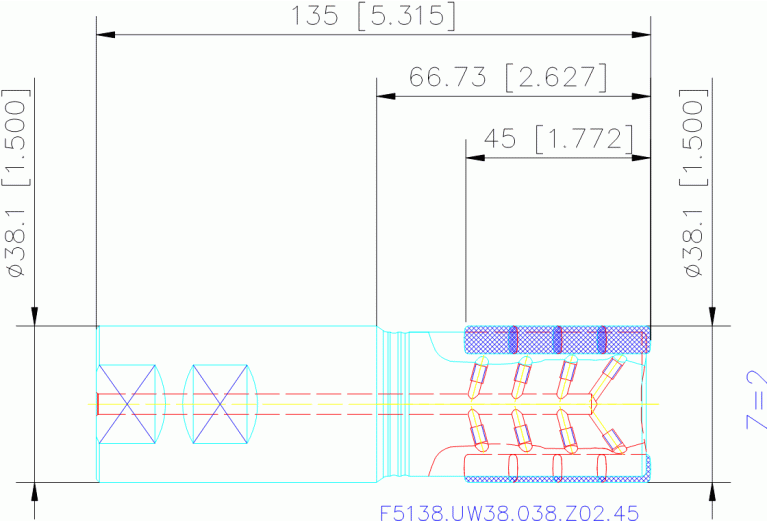

F5138.UW38.038.Z02.45

F5138.UW38.038.Z02.45 F5138.UW38.038.Z02.45 F5138.UW38.038.Z02.45 F5138.UW38.038.Z02.45

F5138.UW38.038.Z02.45

Walter
Артикул: 6365036
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
APMX Depth of cut maximum
45.009 mm
AZ Plunge depth maximum
1.1 mm
BD Body diameter
35.1 mm
BLDA Tool style code Position A
4
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CICT Cutting item count
8
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DC Cutting diameter
38.1 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL15001035
FamilyProducts
Helical milling cutters F5138
GAMF Rake angle radial
0 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
R - Right
ID Technical product number
6365036
Interface codes
J6 / J61
ISO
ZYL10S1500h$06
ISYC Subclass
307-07 - Non-centre cutting multiple rows end mill
KAPR Tool cutting edge angle
90 Degree
LOC-02 BI Block index
2
LOC-02 ISO
WR$$LN1306043R***08
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
W-LN1306043R***08
LOC-03 CCFMS Form
10
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
3 Inch with coolant
LOC-03 CZCMS Size code
1500
LOC-03 DCONMS Diameter
38.1 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$06
LOC-03 ISO
ZYL10S1500h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL15001035
LPR Protruding length
50.013 mm
LU Usable length
50.013 mm
Name Identifying order number
F5138.UW38.038.Z02.45
OAL Overall length
135 mm
RMPX Ramping angle maximum
0 Degree
RPMX Rotational speed maximum
23100 1/min
STDLET Standard letter to the standard number
WE
STDNO Standard
ISO3338-2
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
FEC - Square shoulder milling,FPL - Face milling,FZI - Circular milling
WT Weight of item
0.967 kg
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
