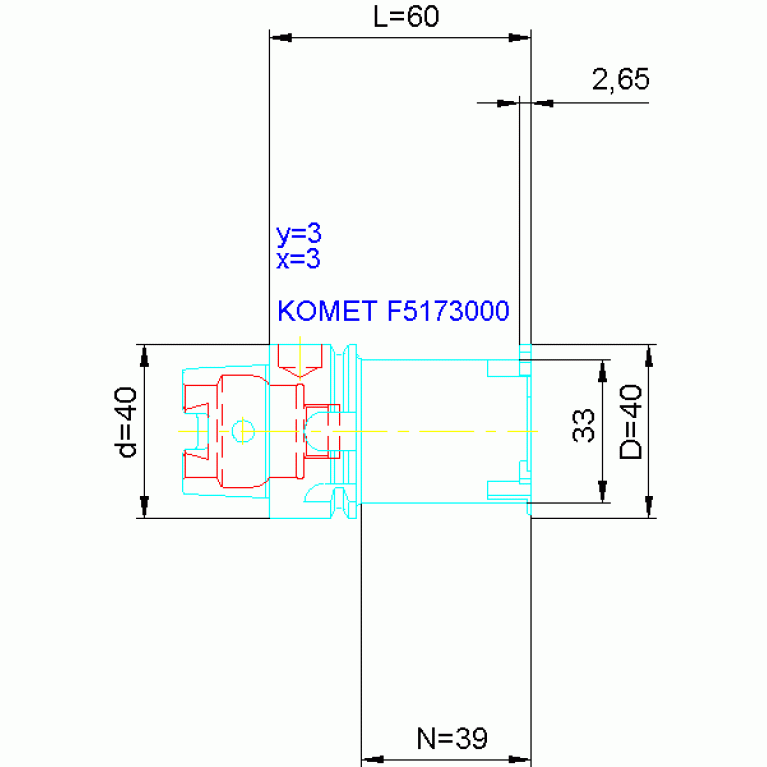

F51 73000
F51 73000
Артикул:
1481392
В наличии
Характеристики
APMX Depth of cut maximum
2.5 mm
BI Block index
1
CCONMS Connection count machine side
0
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
KOG - Komet Group
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
40 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/24/2012
FamilyProducts
Zirkularfräser Ø40 999
HAND Cutting direction
R - Right
ID Technical product number
1481392
Interface codes
/
ISYC Subclass
307-07 - Non-centre cutting multiple rows end mill
LOC-01 BI Block index
1
LOC-01-Connection-codes
J44 / J441 - Insert (Unknown 01)
LOC-03 DCONMS Diameter
0 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LU Usable length
39 mm
Name Identifying order number
F51 73000
OAL Overall length
80 mm
Working process
No working processes available
ZEFF Face effective cutting edge count
3
ZEFP Peripheral effective cutting edge count
3
