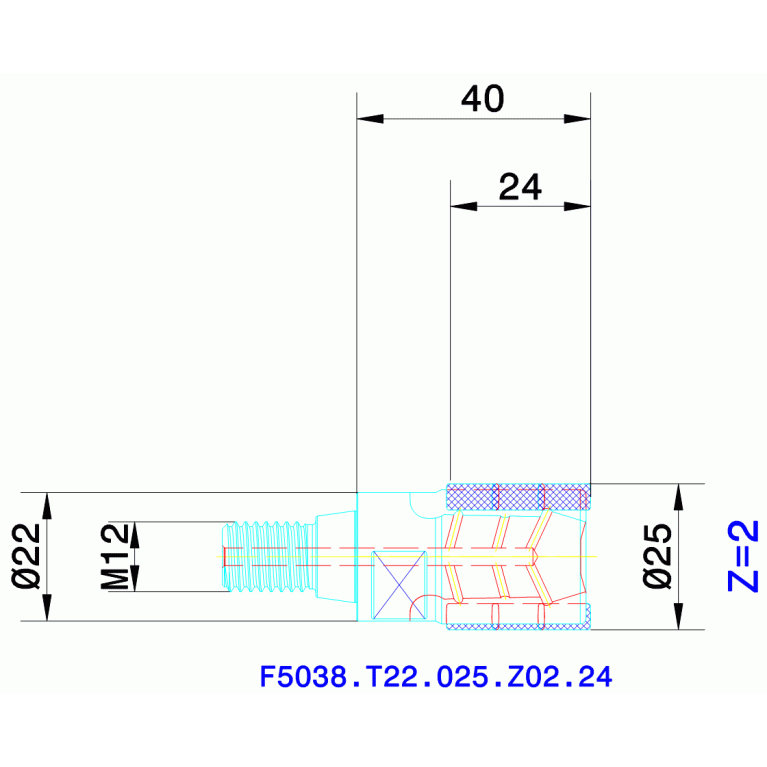

Главная Каталог продукции Toolunited 14 307-07 - Non-centre cutting multiple rows end mill F5038.T22.025.Z02.24

F5038.T22.025.Z02.24

F5038.T22.025.Z02.24 F5038.T22.025.Z02.24 F5038.T22.025.Z02.24 F5038.T22.025.Z02.24

F5038.T22.025.Z02.24

Walter
Артикул: 6515093
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
APMX Depth of cut maximum
24 mm
AZ Plunge depth maximum
0.8 mm
BD Body diameter
23 mm
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CICT Cutting item count
6
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DC Cutting diameter
25 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
SAW02200195
FamilyProducts
Porcupine milling cutters F5038
HAND Cutting direction
R - Right
ID Technical product number
6515093
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
0
ISISO B Indicator for ISO cutting plate Pos.B
0
ISO
SAW01C0220$$$$
ISYC Subclass
307-07 - Non-centre cutting multiple rows end mill
KAPR Tool cutting edge angle
90 Degree
LOC-02 BI Block index
2
LOC-02 ISO
WR$$LN0904023R***04
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
W-LN0904023R***04
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
SAW Screw mounting WALTER
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0220
LOC-03 DCONMS Diameter
22 mm
LOC-03 ISO
SAW01C0220$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SAW02200195
LPR Protruding length
40 mm
LU Usable length
40 mm
Name Identifying order number
F5038.T22.025.Z02.24
OAL Overall length
63 mm
RMPX Ramping angle maximum
0 Degree
RPMX Rotational speed maximum
39600 1/min
Working process
FEC - Square shoulder milling,FPL - Face milling,FZI - Circular milling
WT Weight of item
0.122 kg
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
