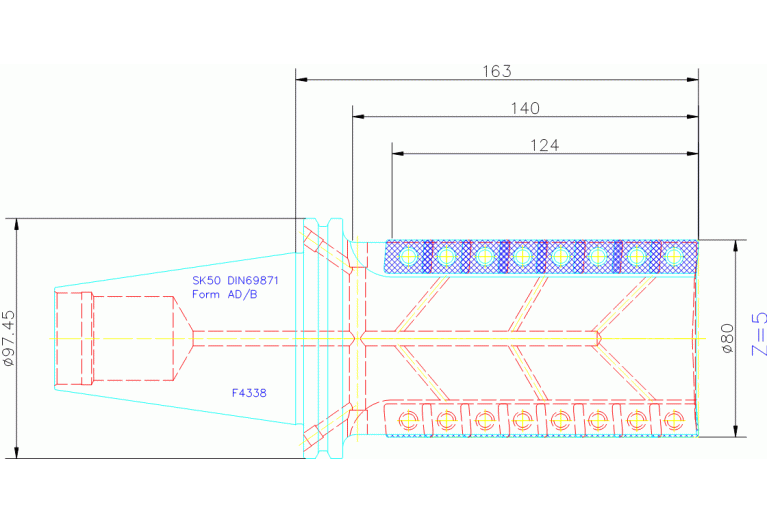

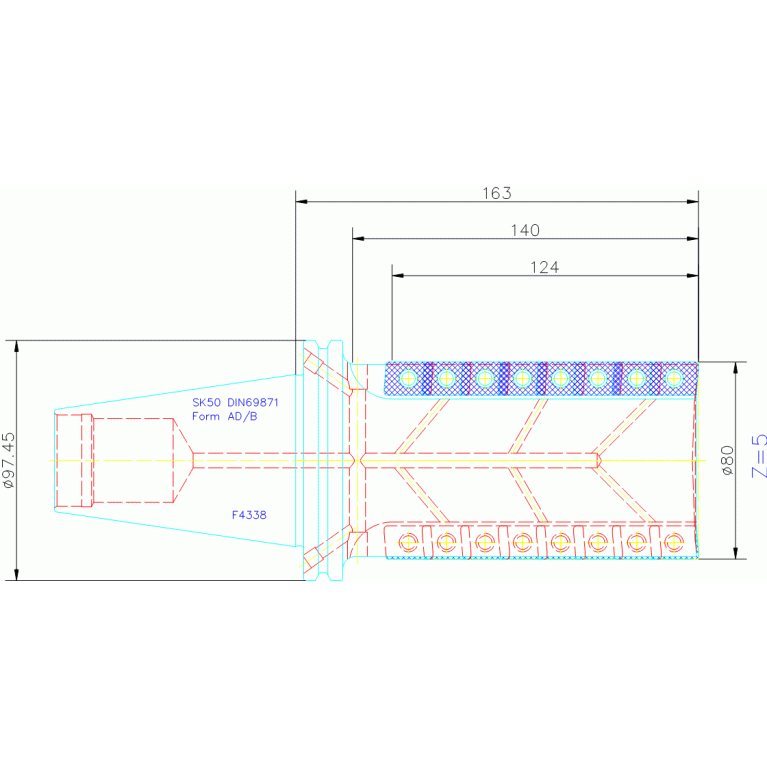

Главная Каталог продукции Toolunited 14 307-07 - Non-centre cutting multiple rows end mill F4338.S5.080.Z05.124

F4338.S5.080.Z05.124

Артикул: 5677433

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

0 - Adjustment not possible

APMX Depth of cut maximum

124 mm

AZ Plunge depth maximum

0.8 mm

BD Body diameter

77.9 mm

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

7 - Coolant entry, decentral and axially concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

80 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

SKG05001795

FamilyProducts

Porcupine milling cutters F4338

HAND Cutting direction

R - Right

ID Technical product number

5677433

Interface codes

J6 / J61

ISISO A Indicator for ISO cutting plate Pos.A

ISISO B Indicator for ISO cutting plate Pos.B

ISO

SKG17C0500$$$$

ISYC Subclass

307-07 - Non-centre cutting multiple rows end mill

KAPR Tool cutting edge angle

90 Degree

LF Functional length

163 mm

LOC-02 BI Block index

LOC-02 ISO

WR$$AD1807123R***12

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

W-AD1807123R***12

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

SKG steep taper shank

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0500

LOC-03 DCONMS Diameter

50 mm

LOC-03 ISO

SKG17C0500$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG05001795

LPR Protruding length

163 mm

LU Usable length

140 mm

Name Identifying order number

F4338.S5.080.Z05.124

OAL Overall length

264.8 mm

RMPX Ramping angle maximum

0.62 Degree

RPMX Rotational speed maximum

11100 1/min

STDLET Standard letter to the standard number

AD/B

STDNO Standard

ISO7388-1

Working process

FEC - Square shoulder milling,FFO - Die milling,FNU - Groove milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling

WT Weight of item

5.99 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
