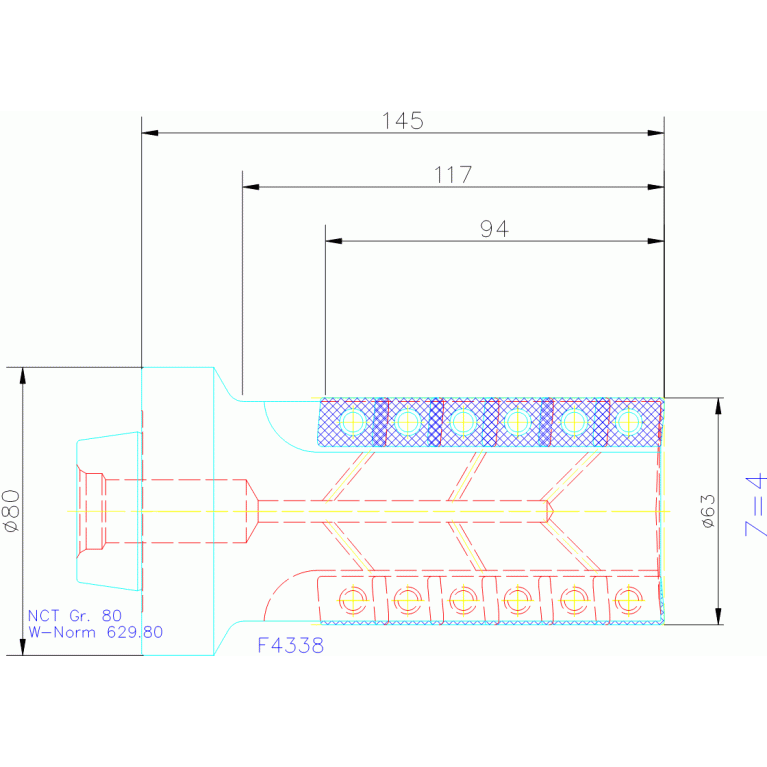

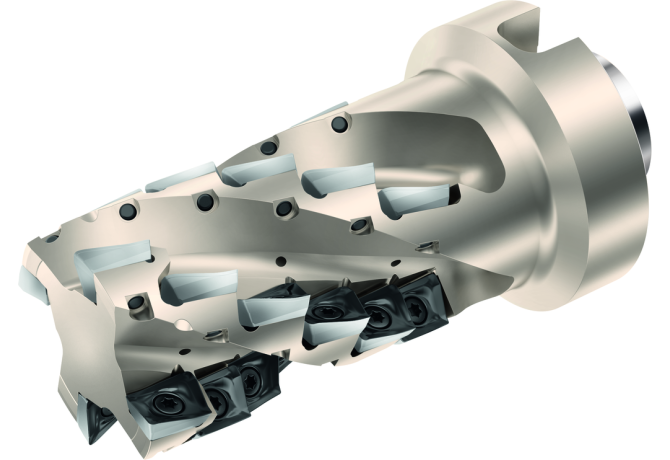

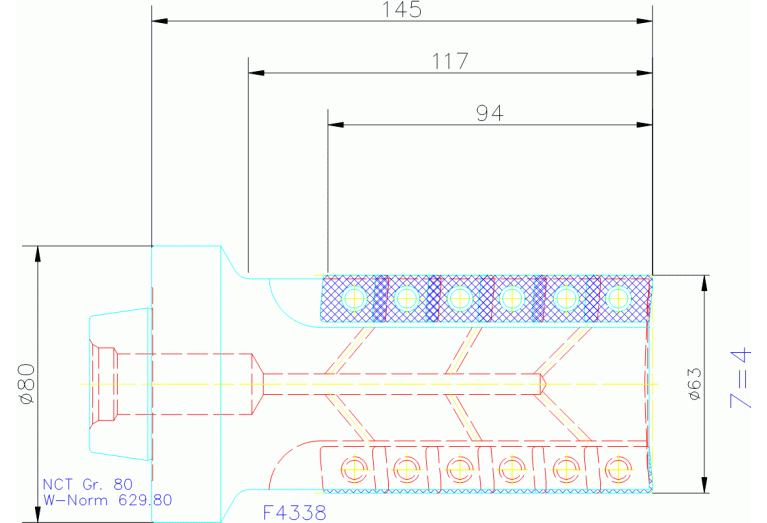

Главная Каталог продукции Toolunited 14 307-07 - Non-centre cutting multiple rows end mill F4338.N8.063.Z04.94

F4338.N8.063.Z04.94

Артикул: 5677434

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

0 - Adjustment not possible

APMX Depth of cut maximum

94 mm

AZ Plunge depth maximum

0.9 mm

BD Body diameter

60.9 mm

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

63 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

NCT08000195

FamilyProducts

Porcupine milling cutters F4338

HAND Cutting direction

R - Right

ID Technical product number

5677434

Interface codes

J6 / J61

ISISO A Indicator for ISO cutting plate Pos.A

ISISO B Indicator for ISO cutting plate Pos.B

ISO

NCT01C0800$$$$

ISYC Subclass

307-07 - Non-centre cutting multiple rows end mill

KAPR Tool cutting edge angle

90 Degree

LOC-02 BI Block index

LOC-02 ISO

WR$$AD1807123R***12

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

W-AD1807123R***12

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

NCT Novex-NC-Tools WALTER

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0800

LOC-03 DCONMS Diameter

80 mm

LOC-03 ISO

NCT01C0800$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

NCT08000195

LPR Protruding length

117 mm

LU Usable length

117 mm

Name Identifying order number

F4338.N8.063.Z04.94

OAL Overall length

135 mm

RMPX Ramping angle maximum

1 Degree

RPMX Rotational speed maximum

12600 1/min

Working process

FEC - Square shoulder milling,FFO - Die milling,FNU - Groove milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling

WT Weight of item

2.56 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
