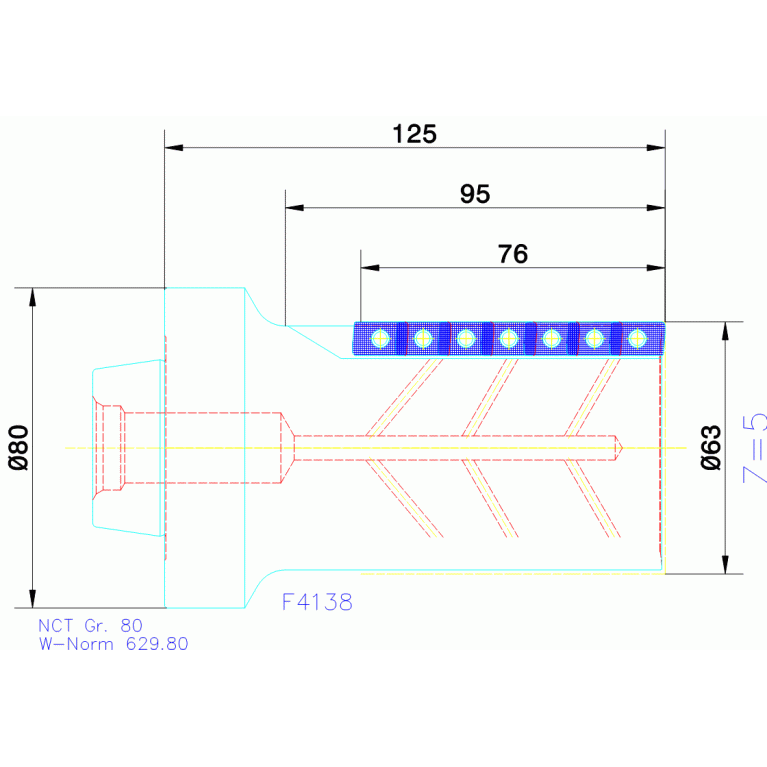

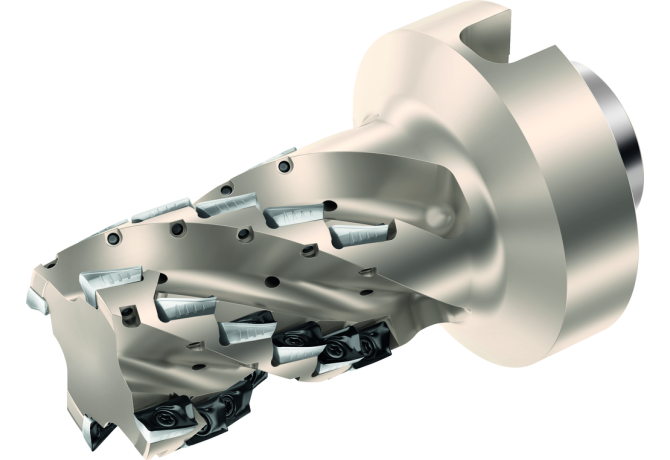

Главная Каталог продукции Toolunited 14 307-07 - Non-centre cutting multiple rows end mill F4138.N8.063.Z05.76

F4138.N8.063.Z05.76

Артикул: 5625922

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

0 - Adjustment not possible

APMX Depth of cut maximum

76 mm

AZ Plunge depth maximum

0.85 mm

BD Body diameter

60.9 mm

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

63 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

NCT08000195

FamilyProducts

Porcupine milling cutters F4138

HAND Cutting direction

R - Right

ID Technical product number

5625922

Interface codes

J6 / J61

ISISO A Indicator for ISO cutting plate Pos.A

ISISO B Indicator for ISO cutting plate Pos.B

ISO

NCT01C0800$$$$

ISYC Subclass

307-07 - Non-centre cutting multiple rows end mill

KAPR Tool cutting edge angle

90 Degree

LOC-02 BI Block index

LOC-02 ISO

WR$$AD1204043R***08

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

W-AD1204043R***08

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

NCT Novex-NC-Tools WALTER

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0800

LOC-03 DCONMS Diameter

80 mm

LOC-03 ISO

NCT01C0800$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

NCT08000195

LPR Protruding length

125 mm

LU Usable length

99 mm

Name Identifying order number

F4138.N8.063.Z05.76

OAL Overall length

143 mm

RMPX Ramping angle maximum

0.85 Degree

RPMX Rotational speed maximum

17900 1/min

Working process

FEC - Square shoulder milling,FFO - Die milling,FNU - Groove milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling

WT Weight of item

2.571 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
